Paul S. Sarbanes Silver Spring Transit Center

Back to: BDC HomeNeighborhood ProjectsSilver Spring Projects › Paul S. Sarbanes Silver Spring Transit Center

Show the project location in google mapColesville Road
Silver Spring, MD 20910

Picture of the Paul S. Sarbanes Silver Spring Transit Center

Funding/Expenditure Schedule



Project Team

Architect
Zimmer Gunsul Frasca Architects
Fritz Schellkopf
(202) 380-3058
Project Engineer
Parsons Brinckerhoff
Gerald S. Jannetti
(410) 385-4193
General Contractor
Foulger-Pratt Contracting
David Uffelman , President
(240) 499-9600

Montgomery County Government
Department of General Services

Manager III
Frank Roberts
(240) 777-6084
Project Manager
Tim O'Gwin
(240) 777-6051

Current Phase: Under Construction

Project Status and Schedule:

Monthly Project Update - May 2014

The Interim Operations Site for bus traffic and passenger waiting areas continues to function successfully, as it has since the start of operations in September 2008.

The Transit Center portion of this project is nearly complete except for the necessary concrete remediation work. The decks for Level 330 and Level 350 and the two pour strips on the 330 level are deficient and require remediation. In July 2012 the County hired an independent consultant KCE Structural Engineers (KCE) to evaluate the structure. KCE issued its report on the non-compliant work on March 19, 2013. A further report was also prepared for the County Executive by a pro bono Independent Advisory Committee and issued on April 21, 2014. The remediation at the SSTC is based on the joint recommendations of both reports. The County, WMATA, Contractors and Consultants continue to collaborate on the proposed design options to repair the deficiencies.

Phase One of the remediation of the transit center has been completed. The work included repairs to the two pour strip top slabs and the construction of nine (9) concrete support beams under each pour strip. The pour strips are located on the far east and west sides of the transit center at the 330 (middle) level.

Phase Two of the remediation will provide for a 2 inch overlay of latex modified concrete (LMC) installed over the existing concrete road surfaces on the middle and upper levels of the transit center. The LMC design was approved by the County’s Department of Permitting Services on October 11, 2013. Preparatory work has been ongoing and is now mostly completed to accept the LMC. In addition to the LMC overlay, the remediation work in Phase II will include additional reinforcement of the existing beams and girders in the superstructure of the SSTC in order to eliminate the need for any future repairs which might result from shear and torsion forces on the framed structure. This additional reinforcement, or stiffening, results from the recommendations to the County from both KCE and the Independent Advisory Committee.

Activities for the remaining project work continue. These activities include installation of the Electronic Vehicle Identification and Display System, the Data Transmission System, final Commissioning & Closeout, and completion of items from the County’s work list with the Contractor. At the County’s direction the Interim Maintenance Program for the facility’s electrical and mechanical equipment will continue until the facility is turned over to WMATA.

The Metropolitan Branch Trail from the Silver Spring Metro Station Plaza to Ripley Street was opened to the public in January 2013. The Ripley Street sidewalk from Bonifant Street to the Metropolitan Branch Trail and MARC platform opened in February 2014. The public continues to have full pedestrian access on all sides of the facility.

Construction Progress Photos:

Please see the Photos tab for over 100 construction progress pictures.

The proposed Paul S. Sarbanes Silver Spring Transit Center is a three-tiered, urban, multi-modal, state of the art transit facility proposed for downtown Silver Spring.

It will feature;

  • 32 bus bays for WMATA Metrobus, Montgomery County Ride-On, MTA regional commuter bus, Van-Go shuttle, Inter-city Buses, and University of Maryland Shuttle,
  • Direct access to Metrorail and MARC,
  • 54 Kiss & Ride spaces and taxi spaces,
  • Intelligent Transportation system,
  • Multi-modal transit store,
  • Accommodation for future Bi-County Transitway, connections to regional hiker/biker trails and a local trail, and open space replacement and enhancement.

The new facility will replace and significantly increase the capacity, safety and efficiency of a more than thirty year old, aging, surface transit facility in the heart of the newly revitalized downtown Silver Spring, eliminate the existing traffic conflicts, increase pedestrian safety, facilitate multi-modal transfers and provide well-developed bicycle access into the mass transit site.

Planning for this facility has carefully addressed and considered future extensions of mass transit such as the Bi-County Transitway and the District of Columbia/Georgia Avenue Corridor facility as well as the planned regional Metropolitan Branch and Capital Crescent Trails and the Silver Spring Green Trail.

The new Paul S. Sarbanes Silver Spring Transit Center is designed for integrated private transit oriented development. The private transit oriented development, which will be paid for with private funds, is a mixed use project comprised of two residential towers with 450 apartments and condominiums and a 200 room hotel. The private transit oriented development will generate over 4200 additional daily bus and rail trips for a 7% increase in baseline transit ridership at the Transit Center.

The project is being funded through from the Federal Transit Administration (53%), Maryland Mass Transit Administration (11%) and Montgomery County (36%).

Silver Spring Transit Center
Structural Evaluation of Superstructure
March 15, 2013

The SSTC is a cast‐in‐place (CIP), post‐tensioned reinforced concrete structure with two elevated structural levels and an at‐grade level. The facility is located at 8400 Colesville Road, Silver Spring, Maryland.

During construction, circa 2010, concerns were raised about the thickness of the elevated slabs and positioning of the post‐tensioning tendons.

In 2012, Montgomery County retained KCE, who in turn retained Wiss, Janney, Elstner Associates, Inc. (WJE), Walter P Moore and Associates, Inc. (WPM) and others to assess, as a team, the as‐designed and as‐built structure. The purpose of this report is to summarize KCE's evaluations.

We recommend you download the pdf files to your computer and open with a current version of a .pdf reader. These files are large and may take some time to download.

Silver Spring Transit Center Structural Evaluation of Superstructure
Attachments - Volume 1
Attachments - Volume 2
Attachments - Volume 3

The following links are the detailed analysis, test results, studies and other information used by KCE and other consultants to develop the Silver Spring Transit Center Structural Evaluation of Superstructure report (link provided above):

Exhibit A1
Exhibit A2
Exhibit A3
Exhibit A4
Exhibit A5
Exhibit A6
Exhibit AA1
Exhibit B1
Exhibit B2
Exhibit B3
Exhibit B4
Exhibit B5
Exhibit B6
Exhibit B7
Exhibit B8
Exhibit B9
Exhibit B10
Exhibit B11
Exhibit C1
Exhibit D1
Exhibit D2
Exhibit D3
Exhibit E1
Exhibit F1
Exhibit G1
Exhibit H1
Exhibit H2
Exhibit H3
Exhibit H4
Exhibit H5
Exhibit H6
Exhibit J1
Exhibit J2
Exhibit J3
Exhibit K1
Exhibit L1
Exhibit M1
Exhibit N1
Exhibit N2
Exhibit O1
Exhibit P1
Exhibit P2
Exhibit P3
Exhibit P4
Exhibit P5
Exhibit Q1
Exhibit R1
Exhibit R2
Exhibit R3
Exhibit R4
Exhibit S1
Exhibit S2
Exhibit T1
Exhibit U1
Exhibit U2
Exhibit U3
Exhibit U4
Exhibit U5
Exhibit U6
Exhibit U8
Exhibit V1
Exhibit W1
Exhibit W2
Exhibit W3
Exhibit X1
Exhibit Y1
Exhibit Y2
Exhibit Y3
Exhibit Y4
Exhibit Y5
Exhibit Y6
Exhibit Y7
Exhibit Z1

Get Adobe ReaderPlease follow this link to download the latest version of Adobe Reader.

Transit Services During Construction:

SSTCLook for special signs throughout the Interim Operations Site along Wayne, Dixon, and Bonifant that have a map showing the locations of your specific bus stop. You will also see new bus stop signs, shelters, and other amenities to accommodate the new stops. Access to the MARC station has also changed. Again, look for the signs directing you to the new walkway.

Transportation Resources:

  • Site Map and Bus Plan (103 KB, pdf file)
  • Site Map showing distances from Silver Spring Metro
  • Show Walking Instructions - from Silver Spring Metro
  • Show Walking Instructions - from MARC Train
  • Brochure - Silver Spring Transit Center - Finding Your Way During Construction (3 MB, pdf file) or Brochure - Smaller Version (421 KB, pdf file)
  • Ride On Bus web site
  • Disability Services web page on SSTC
  • Parking Options (183 KB, pdf file)
  • Information: 240.773.7777

Links of Interest:

Montgomery County Department of Transportation
Celebrate Silver Spring Foundation - Paul S. Sarbanes Transit Center
WMATA - Silver Spring Transit Center

Change to Slide Show view. Click an image to view in full size.

Vicinity Map

Silver Spring Transit Center - Vicinity Map

Click the image to view the location in Google Map.

Silver Spring Downtown Development

Silver Spring Transit Center - Silver Spring Downtown Development

Click the image to view in full size.

South View

Silver Spring Transit Center - South View

North West View

Silver Spring Transit Center - North West View

North View

Silver Spring Transit Center - North View

Colesville Entrance

Silver Spring Transit Center - Colesville Entrance

Ramsey Entrance

Silver Spring Transit Center - Ramsey Entrance

Bonifant Entrance

Silver Spring Transit Center - Bonifant Entrance

South East View

Silver Spring Transit Center - South East View

West View

Silver Spring Transit Center - West View

Colesville Road View

Silver Spring Transit Center - Colesville Road View

South View

Silver Spring Transit Center - South View

Middle Level Bus Deck

Silver Spring Transit Center - Middle Level Bus Deck

Middle Level Looking Down

Silver Spring Transit Center - Middle Level Looking Down

Metro Branch Trail

Silver Spring Transit Center - Metro Branch Trail

Metro Branch Trail

Silver Spring Transit Center - Metro Branch Trail

Bike Trails

Silver Spring Transit Center - Bike Trails

Aerial Park View

Silver Spring Transit Center - Aerial Park View

Park

Silver Spring Transit Center - Park

Upper Park View

Silver Spring Transit Center - Upper Park View


Change to Slide Show view. Click an image to view in full size.

Silver Sprint Transit Center - construction image

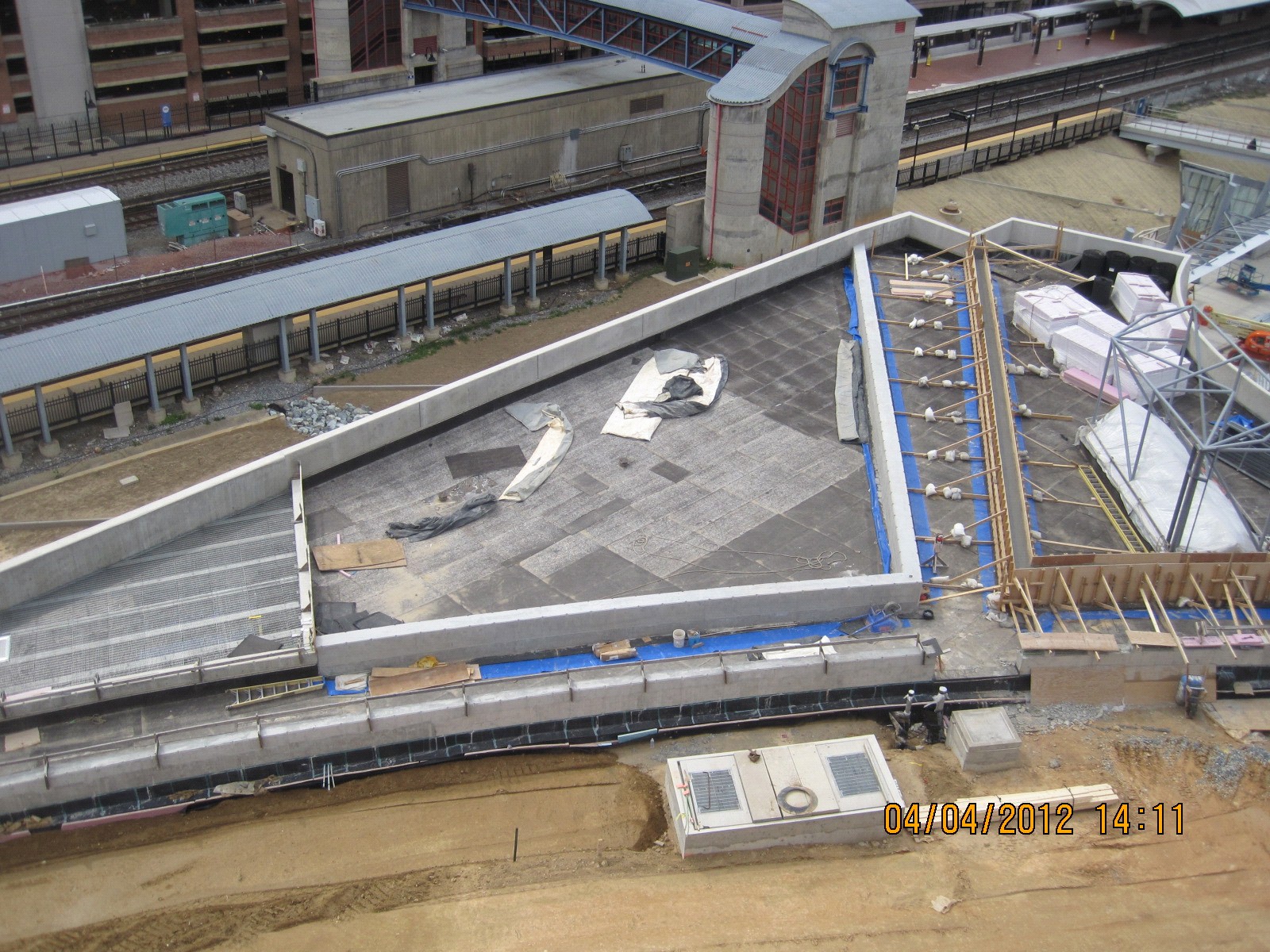

Remediation Beam Preparation Work in Progress at West Pour Strip

Silver Sprint Transit Center - construction image

Remediation Beam Scaffolding Erection in Progress at East Pour Strip

Silver Sprint Transit Center - construction image

Remediation Beam Surface Preparation in Progress

Silver Sprint Transit Center - construction image

Crack Sealing in Progress at West Pour Strip

Silver Sprint Transit Center - construction image

Remediation Beam Rebar Placement in Progress

Silver Sprint Transit Center - construction image

Remediation Beam Formwork in Progress

Silver Sprint Transit Center - construction image

Remediation Beam Formwork Complete

Silver Sprint Transit Center - construction image

Remediation Beam Pour at West Pour Strip

Silver Sprint Transit Center - construction image

Remediation Beam Pour at East Pour Strip

Silver Sprint Transit Center - construction image

Added Nine Remediation Beams at West Pour Strip

Silver Sprint Transit Center - construction image

Added Nine Remediation Beams at East Pour Strip

Silver Sprint Transit Center - construction image

Surface Preparation at East Pour Strip prior to Latex Modified Concrete Overlay

Silver Sprint Transit Center - construction image

Crack Sealing Performed at East Pour Strip

Silver Sprint Transit Center - construction image

Crack Sealing Performed at West Pour Strip

Silver Sprint Transit Center - construction image

Sealed Surface at West Pour Strip

Silver Sprint Transit Center - construction image

Partial Demolition of West Pour Strip Slab

Silver Sprint Transit Center - construction image

Placement of added Rebar at West Pour Strip Slab

Silver Sprint Transit Center - construction image

Repouring of Concrete at West Pour Strip Slab Remediation

Silver Sprint Transit Center - construction image

Concrete Finishing at West Pour Strip Slab Remediation

Silver Sprint Transit Center - construction image

Locating of existing Reinforcement prior to Tendon PVC Duct Repair using a Ground Penetrating Radar

Silver Sprint Transit Center - construction image

Sealing of Deck Cracks at 350 Level

Silver Sprint Transit Center - construction image

Exposed Tendon PVC Duct Repair in Progress

Silver Sprint Transit Center - construction image

These photos show concrete being pumped into the mockup of the pour strip remediation beams

Silver Sprint Transit Center - construction image

These photos show concrete being pumped into the mockup of the pour strip remediation beams.

Silver Sprint Transit Center - construction image

These photos show concrete being pumped into the mockup of the pour strip remediation beams.

Silver Sprint Transit Center - construction image

These photos show concrete being pumped into the mockup of the pour strip remediation beams.

Silver Sprint Transit Center - construction image

These photos show concrete being pumped into the mockup of the pour strip remediation beams.

Silver Sprint Transit Center - construction image

The Metropolitan Branch Trail is open to Ripley Street

Silver Sprint Transit Center - construction image

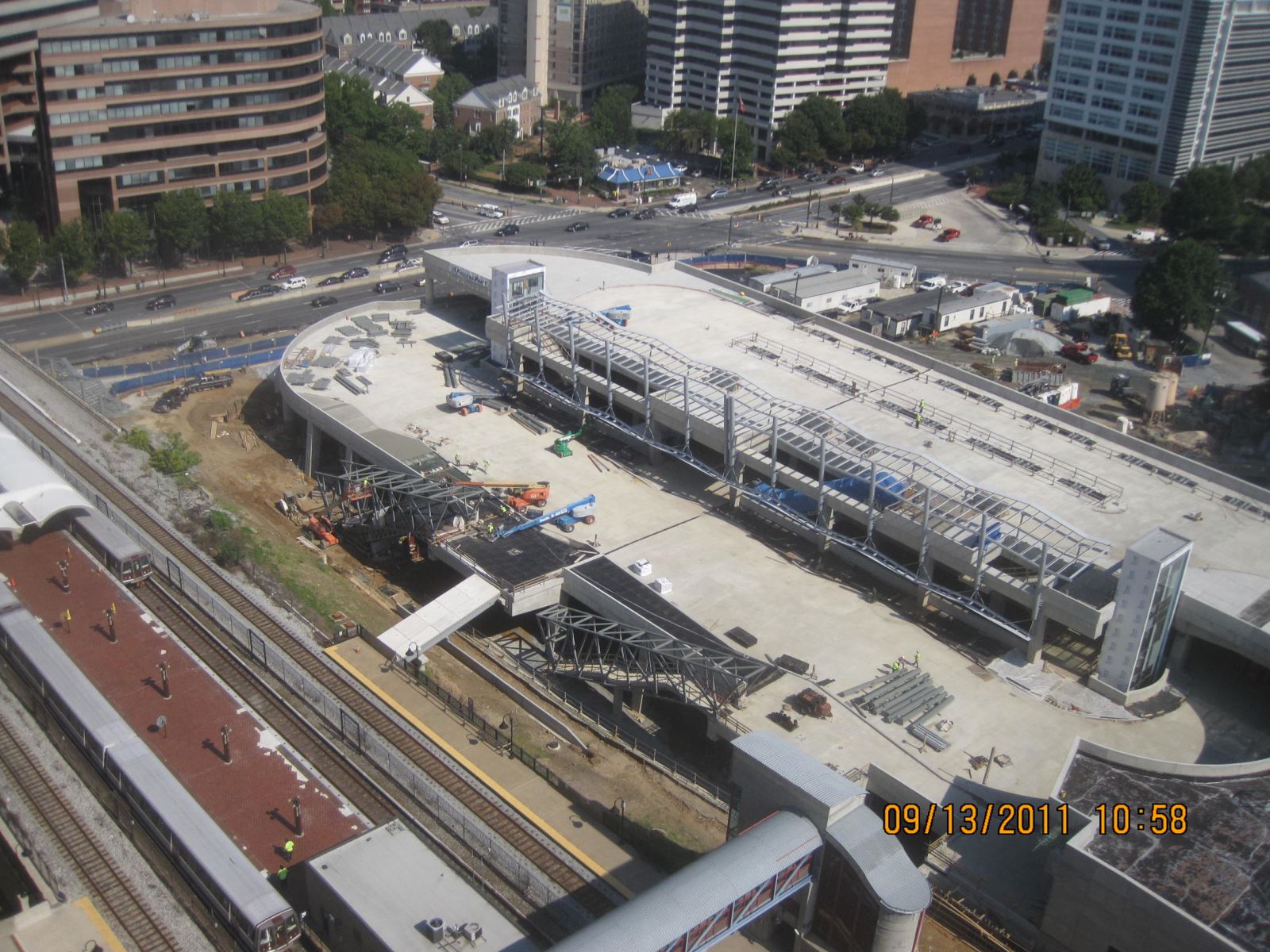

View from County Public Parking Garage 58 adjacent to MARC & Metro Stations

Silver Sprint Transit Center - construction image

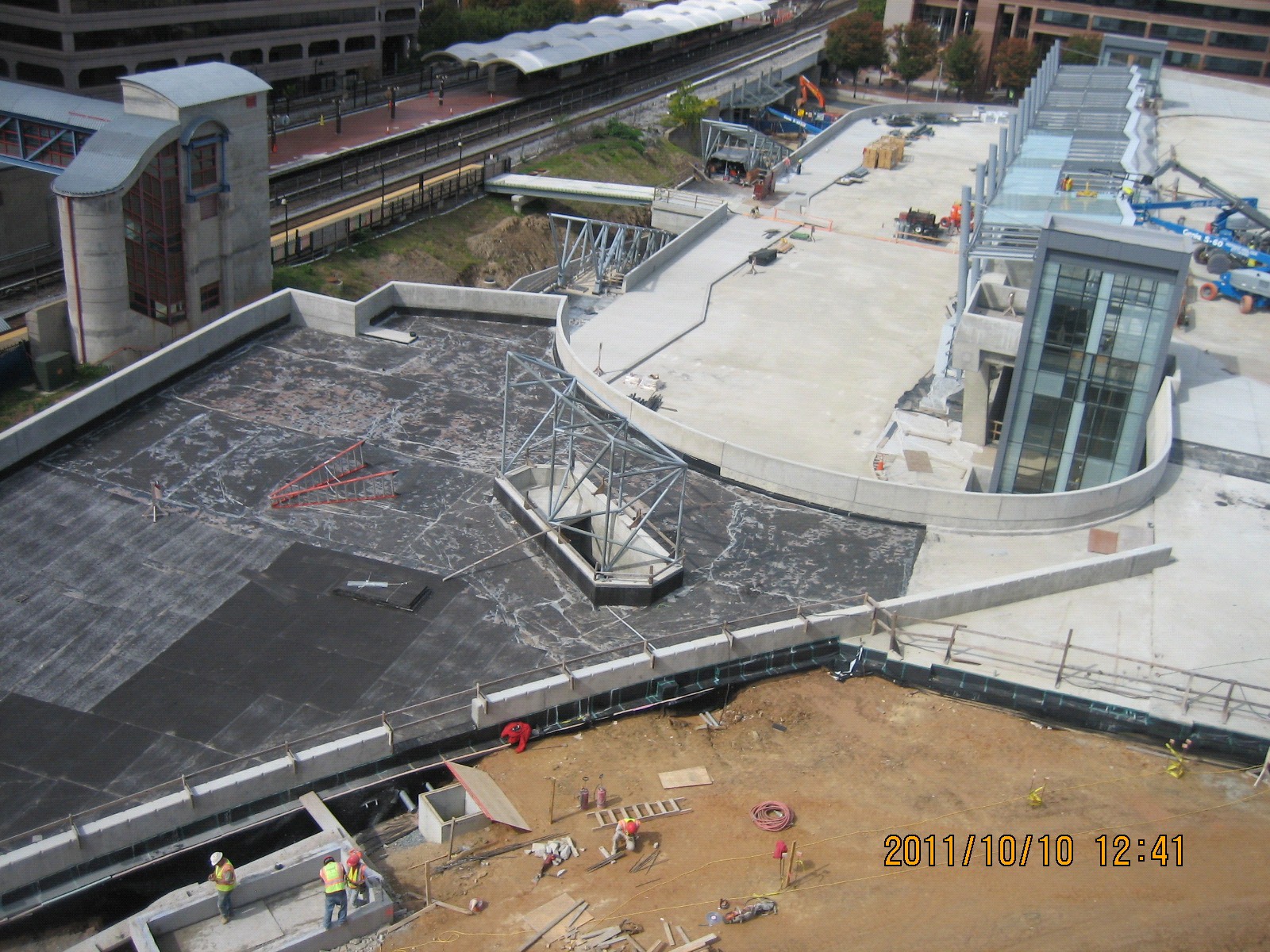

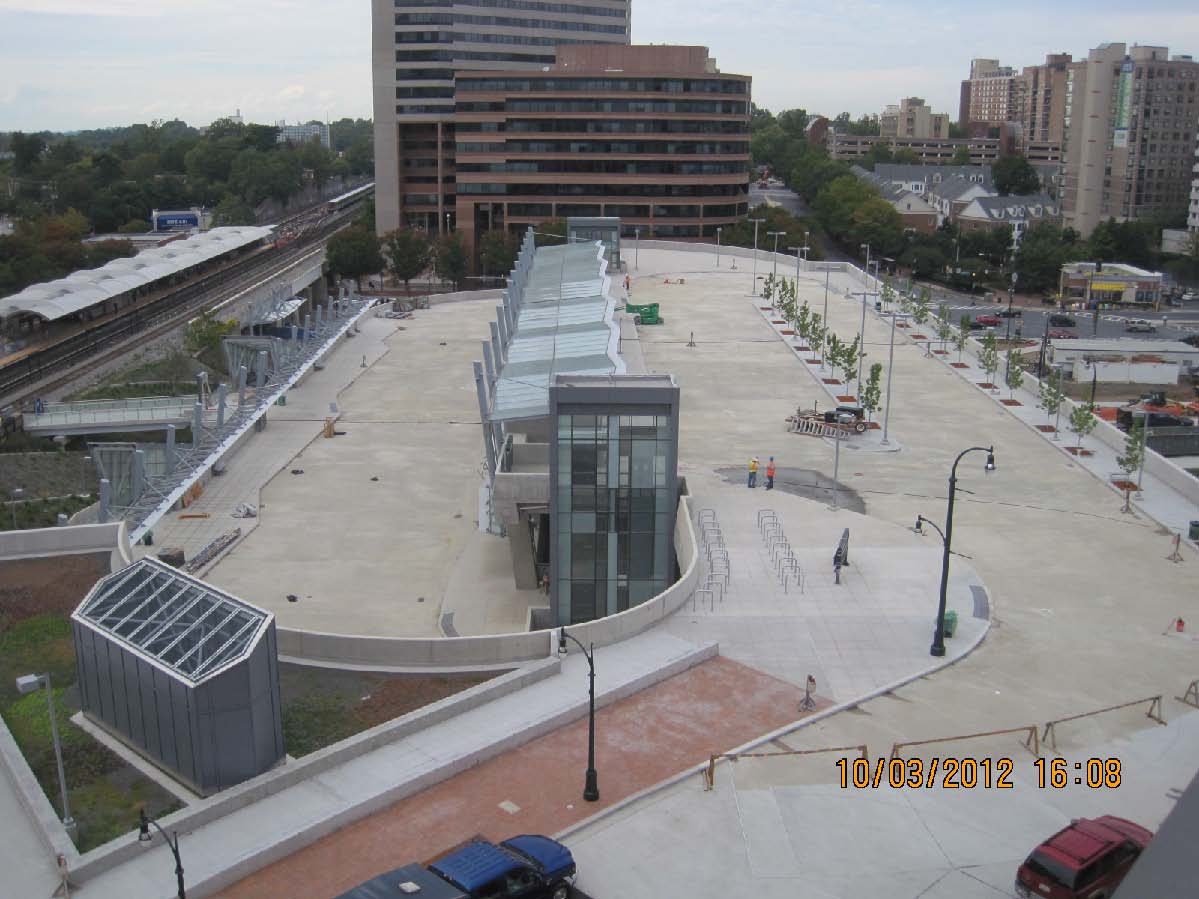

This overall view shows the 350 (Kiss & Ride) level of the facility on the right, and the 330 level is on the left.

Silver Sprint Transit Center - construction image

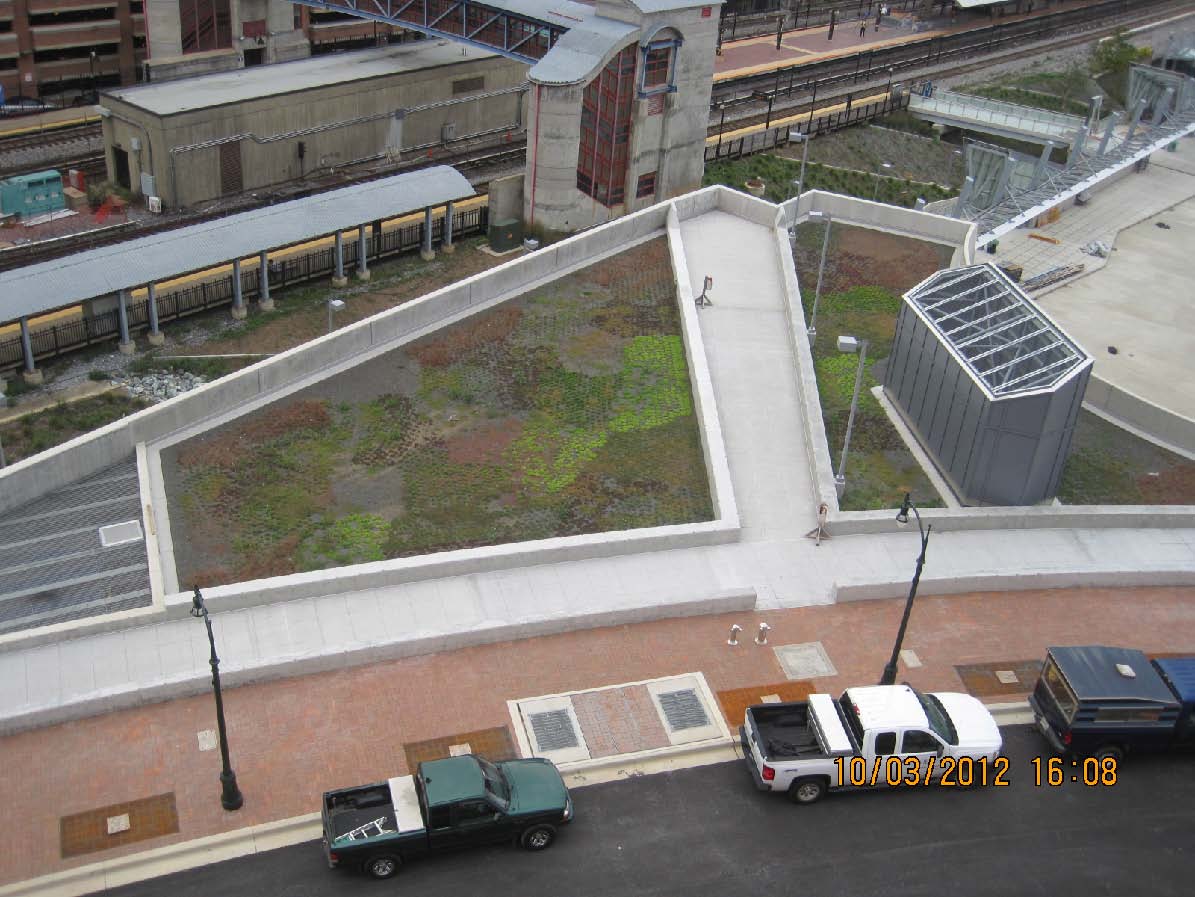

Overall view shows Ripley Street, the grille above the emergency generator, the green roof and the ventilation stack on the 350 level.

Silver Sprint Transit Center - construction image

The MBT (Metropolitan Branch Trail) is complete. This view faces northwest.

Silver Sprint Transit Center - construction image

The MBT (Metropolitan Branch Trail) is complete. This view faces southeast.

Silver Sprint Transit Center - construction image

The MBT (Metropolitan Branch Trail) is complete. This view faces northwest.

Silver Sprint Transit Center - construction image

All three drive lane entrances (Buses only at 305 and 330, taxis and passenger vehicles at 350) are now complete. This photo shows 350.

Silver Sprint Transit Center - construction image

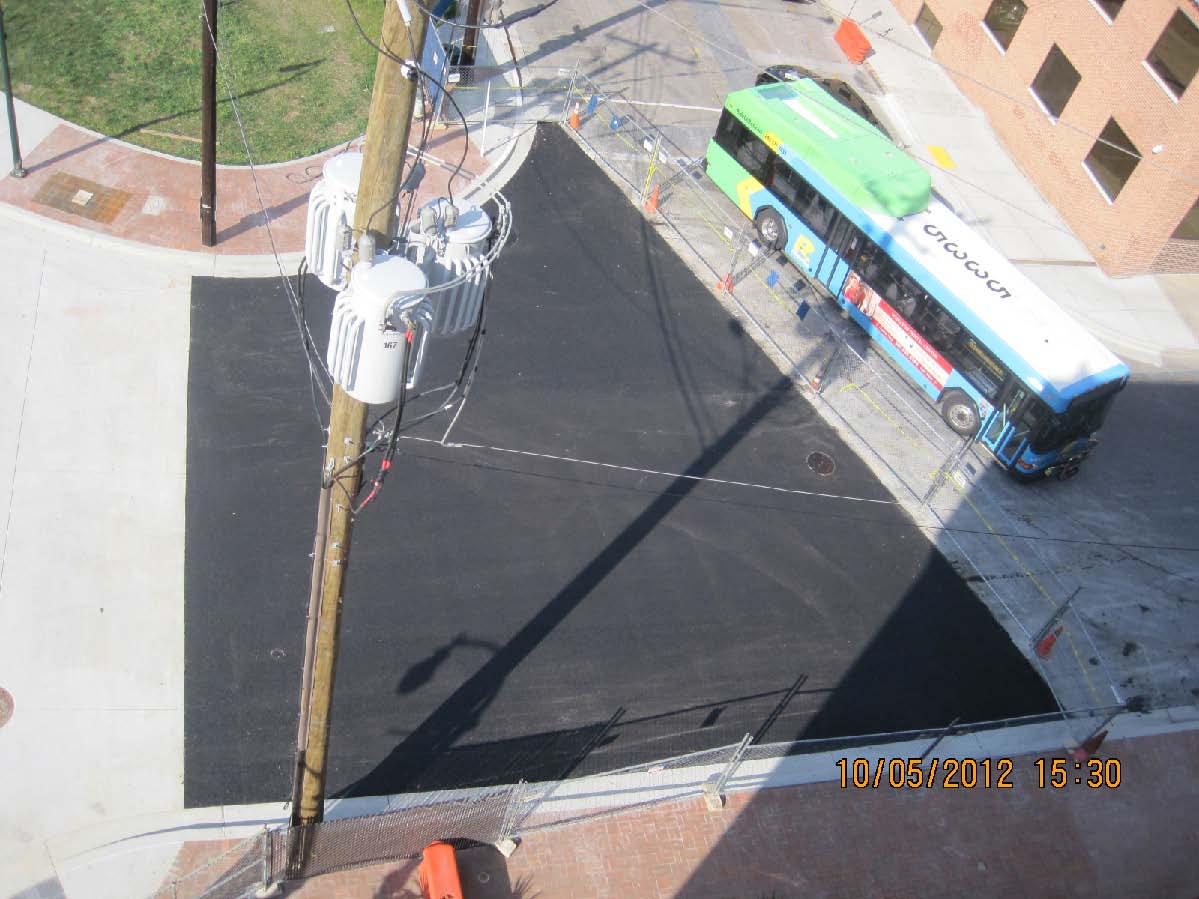

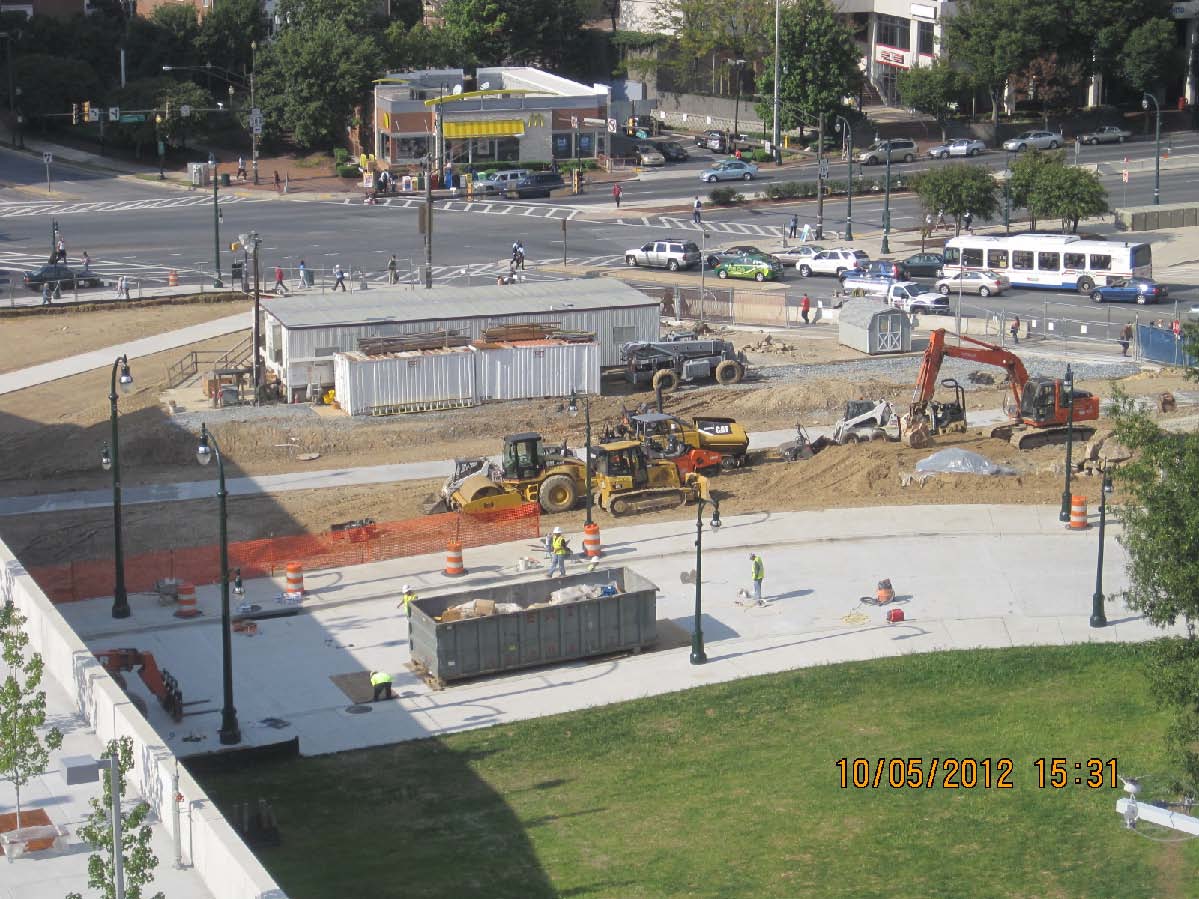

Photo shows that final grading around the building is almost complete. Two long sidewalks connect key intersections to the facility.

Silver Sprint Transit Center - construction image

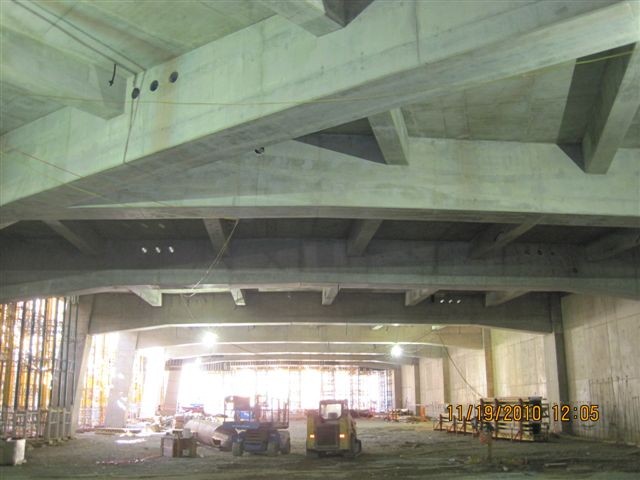

This photo shows the plenum wall, drive lane, girders, beams and planter boxes at the 330 Level.

Silver Sprint Transit Center - construction image
Silver Sprint Transit Center - construction image
Silver Sprint Transit Center - construction image
Silver Sprint Transit Center - construction image

Panoramic view of the construction site

Silver Sprint Transit Center - construction image

Aerial view from Colesville Road looking south. (Picture by Bruce Lee)

Silver Sprint Transit Center - construction image

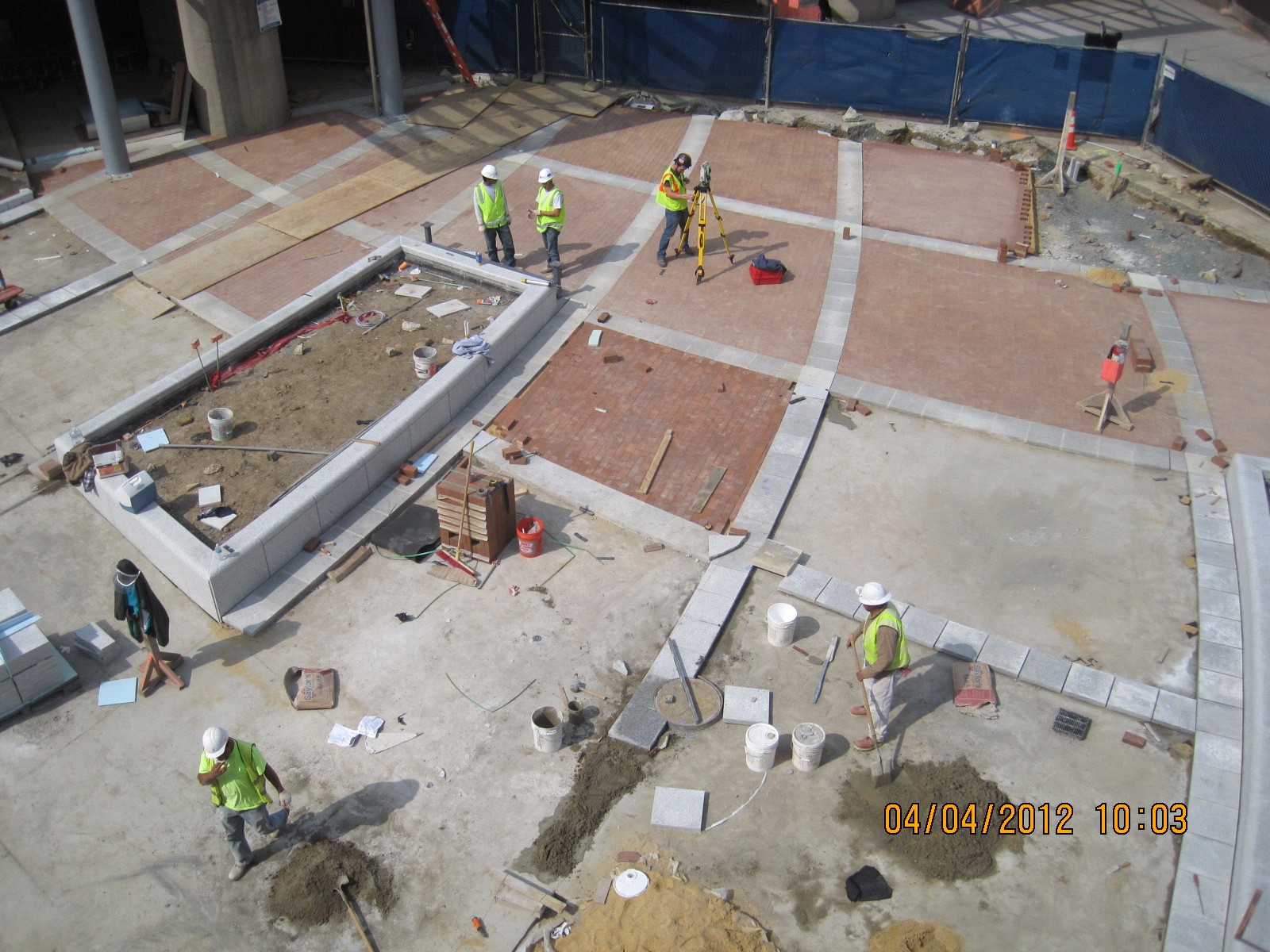

This overall view of the site faces north. AMA is working on seatwalls in the green roof area, on the left side of the photo.

Silver Sprint Transit Center - construction image

This photo shows progress made at the south end of the project, where the green roof and the new roadway, Rippifont, will be constructed.

Silver Sprint Transit Center - construction image

AMA continues slab on grade (SOG) work at the 305 Level.

Silver Sprint Transit Center - construction image

TThis photo shows canopy and glazing installation at Canopy 3, on the 330 Level near the train tracks and the MBT Trail.

Silver Sprint Transit Center - construction image

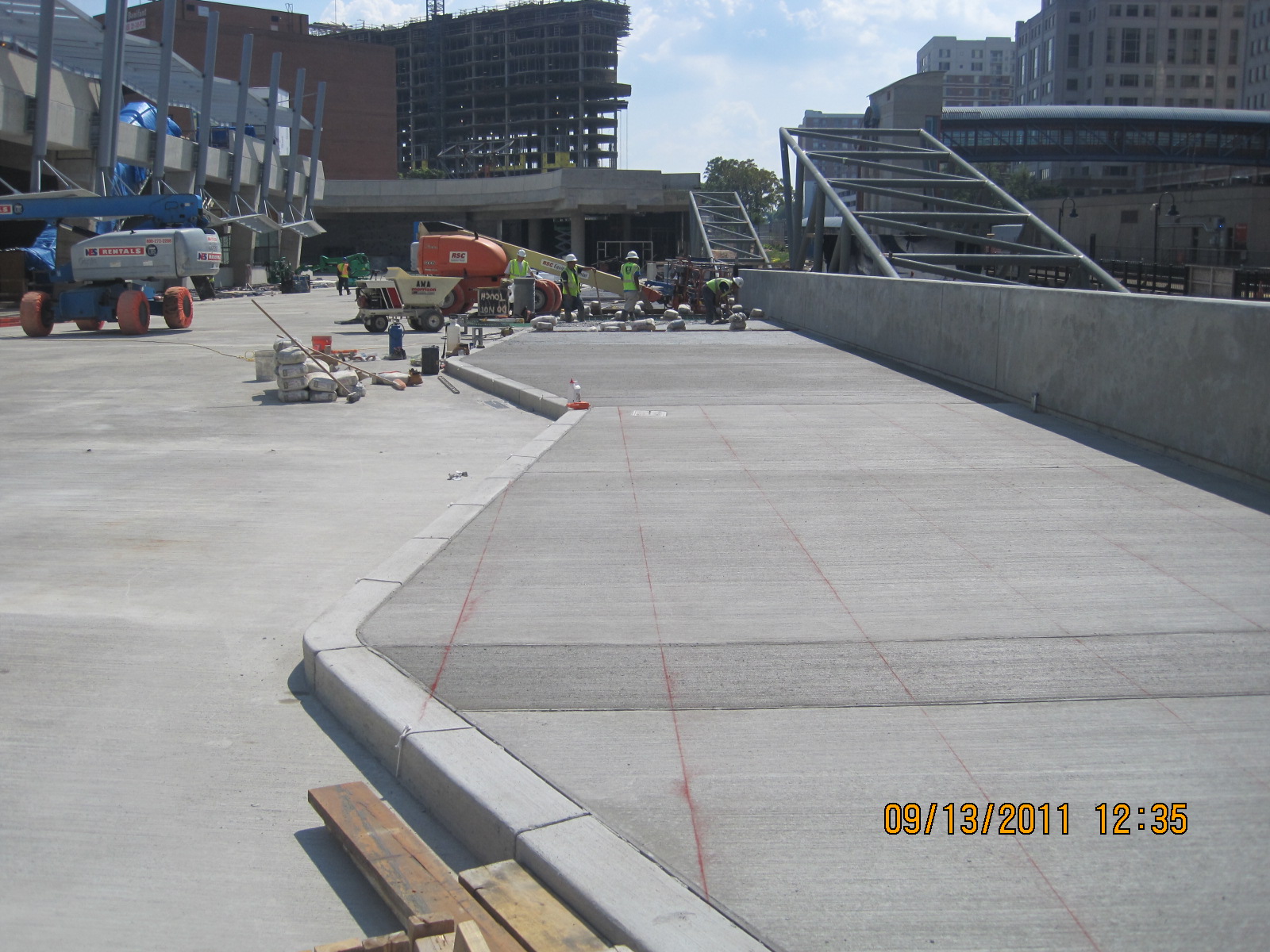

Imperial Stone Paving is making good progress in the plaza area, adjacent to the WMATA entrance, installing brick and granite paving stones in a complex curvilinear pattern.

Silver Sprint Transit Center - construction image

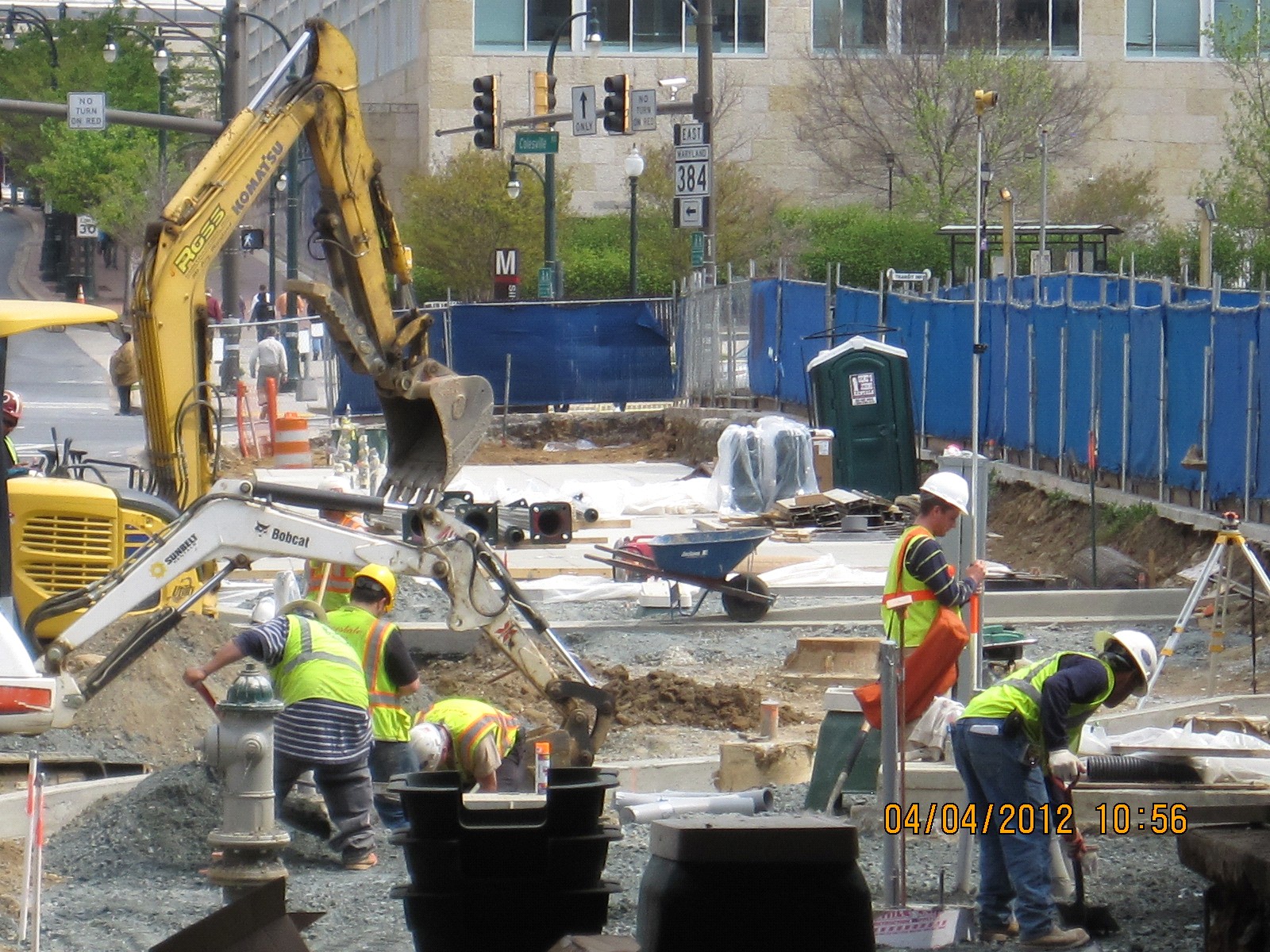

Ross and Freestate are working along Colesville Road to relocate existing utilities, install light poles, conduit and drainage structures.

Silver Sprint Transit Center - construction image

Ross and Freestate are working along Colesville Road to relocate existing utilities, install light poles, conduit and drainage structures.

Silver Sprint Transit Center - construction image

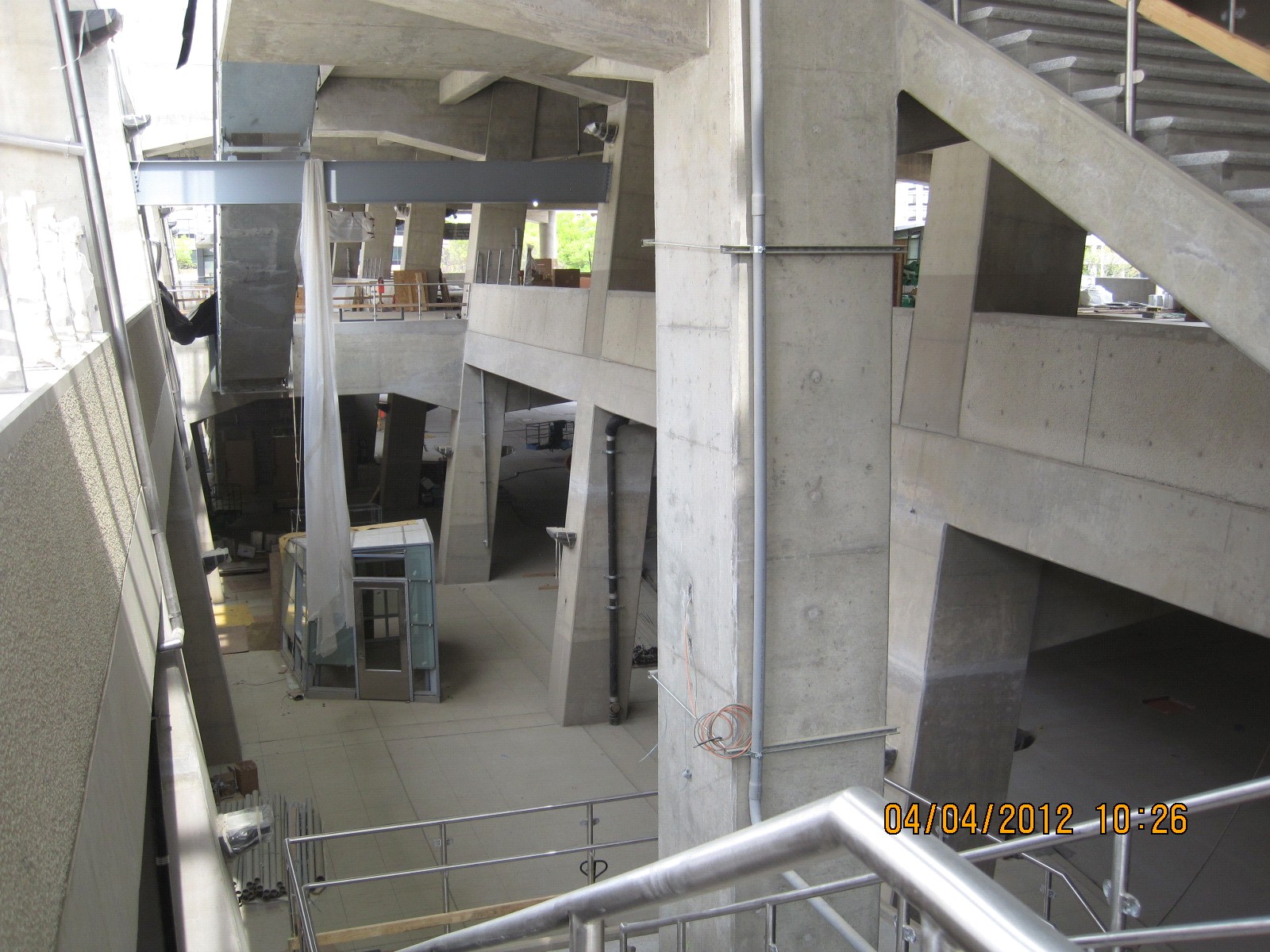

This photo presents the south portion of the central open space. Stair 3 is in the foreground, and escalator 5 is at the upper left. Note the granite stair treads and stainless steel handrail.

Silver Sprint Transit Center - construction image

This photo showcases the north end of the central open space, where work on stair 2 and escalators 3 and 4 is nearly complete. Note the granite stair treads and stainless steel handrail.

Silver Sprint Transit Center - construction image

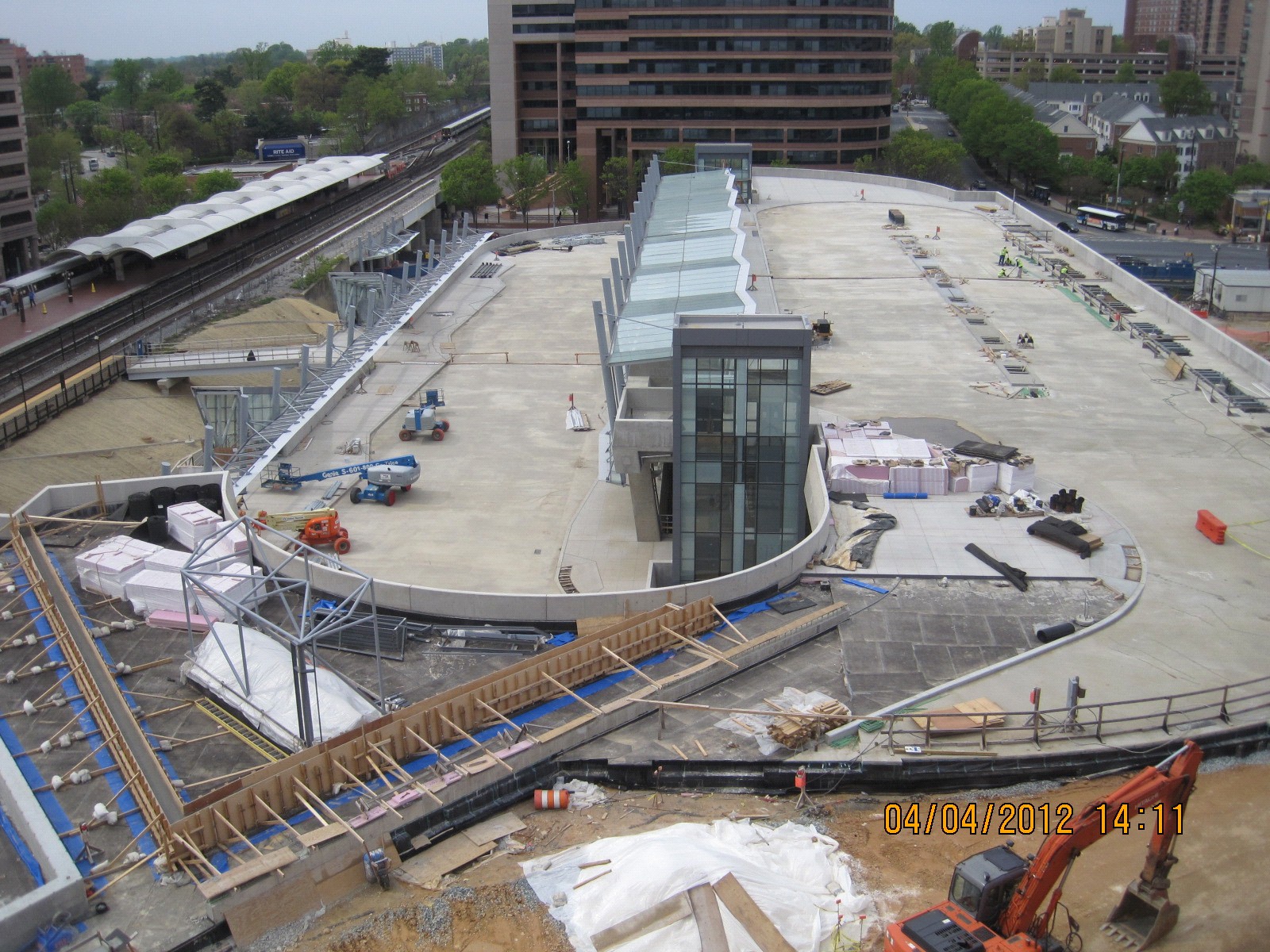

This view, facing north, shows that all of the structural steel for Canopy 4 (top level) is complete, and both elevator towers are completely enclosed.

Silver Sprint Transit Center - construction image

This view faces northwest. The large trusses for vertical egress enclosures (escalators 1 and 2 and stair 1) are in place, at top center of photo, and the framing for the exhaust vent is complete, at lower left.

Silver Sprint Transit Center - construction image

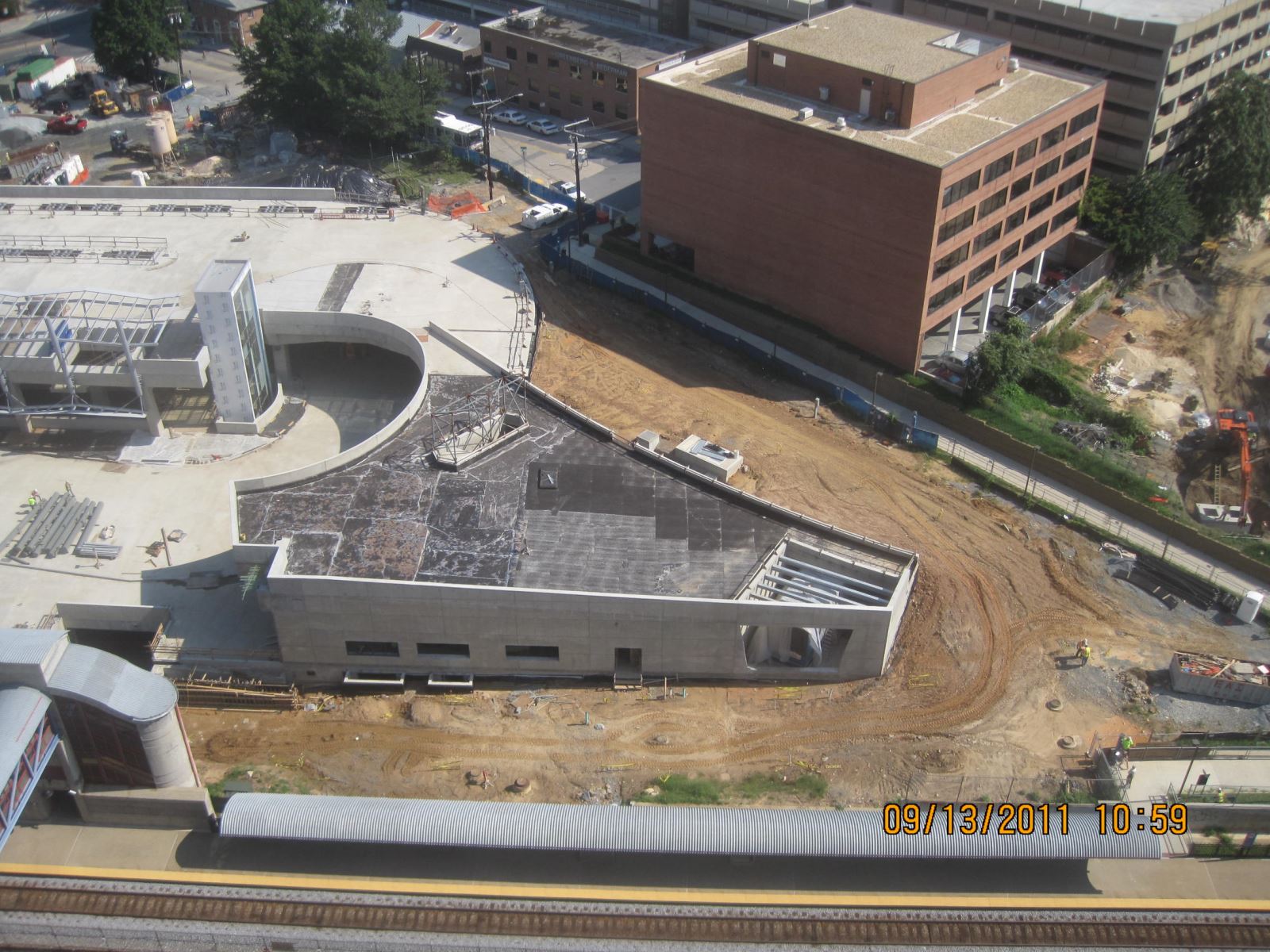

This photo shows the south end of the project. A temporary sidewalk was installed near the south end of the project to access the MARC train platform during the past month.

Silver Sprint Transit Center - construction image

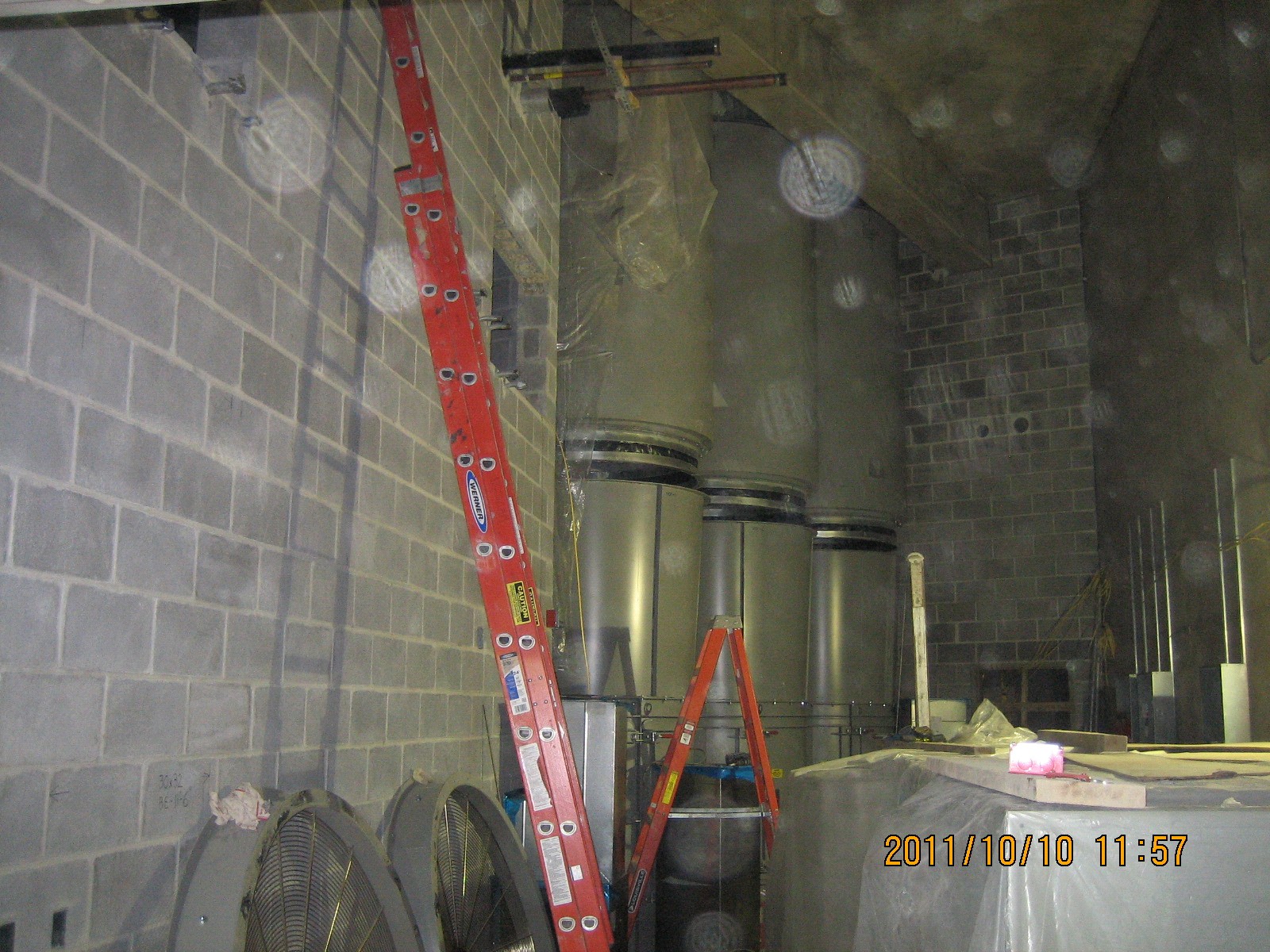

This photo, taken inside the building at the 305 level, shows the three large ventilation ducts that will remove exhaust fumes from the facility.

Silver Sprint Transit Center - construction image

This photo, shot facing south on the 330 level, shows that work is almost complete in this area. Signs and lighting for the facility are installed on the wall, left of center.

Silver Sprint Transit Center - construction image

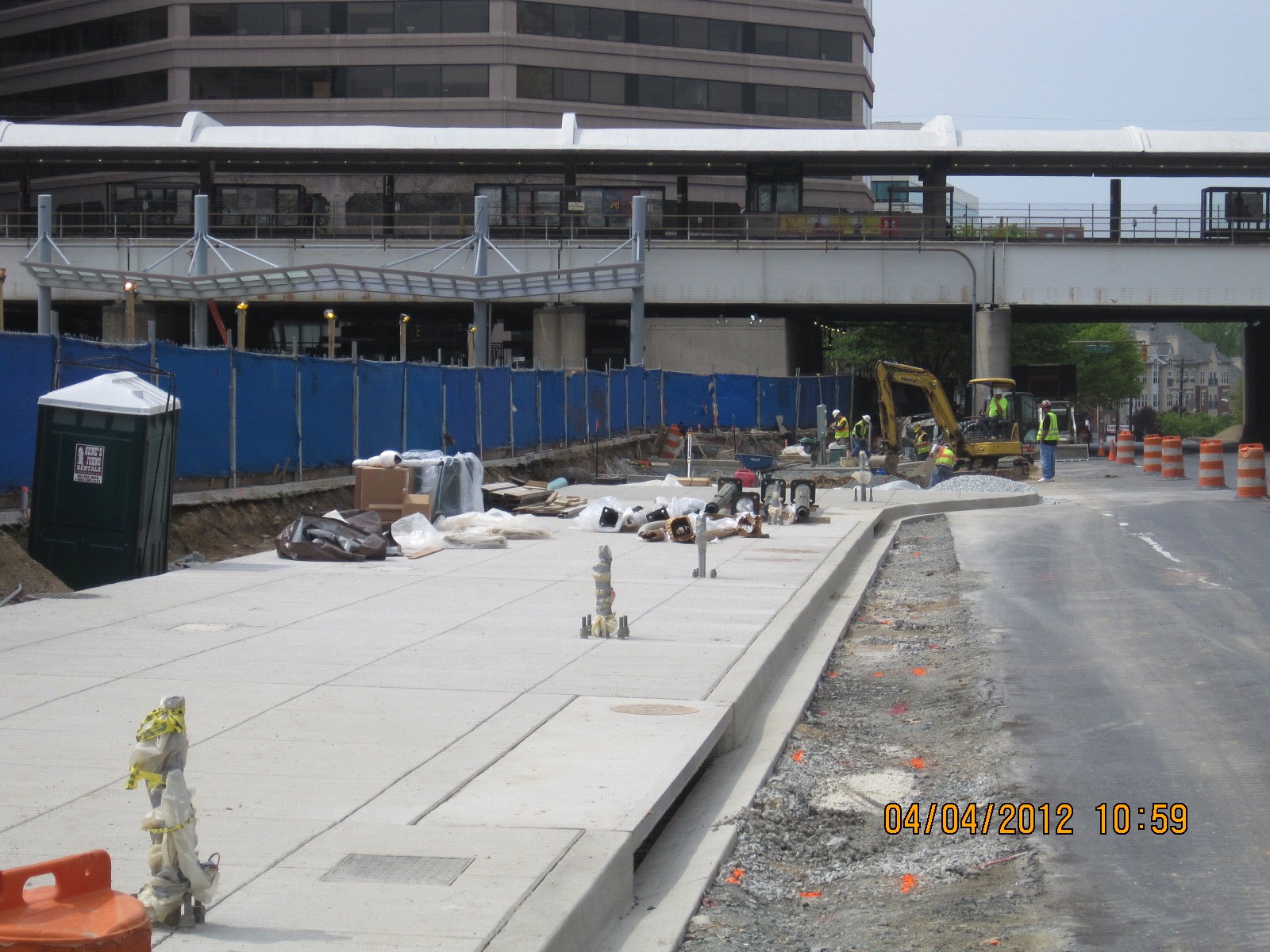

Ross has finished installing pipe and drainage structures at the 305 Level of the building, and AMA has Started placing concrete curb and sidewalk. Roadway construction will begin soon.

Silver Sprint Transit Center - construction image

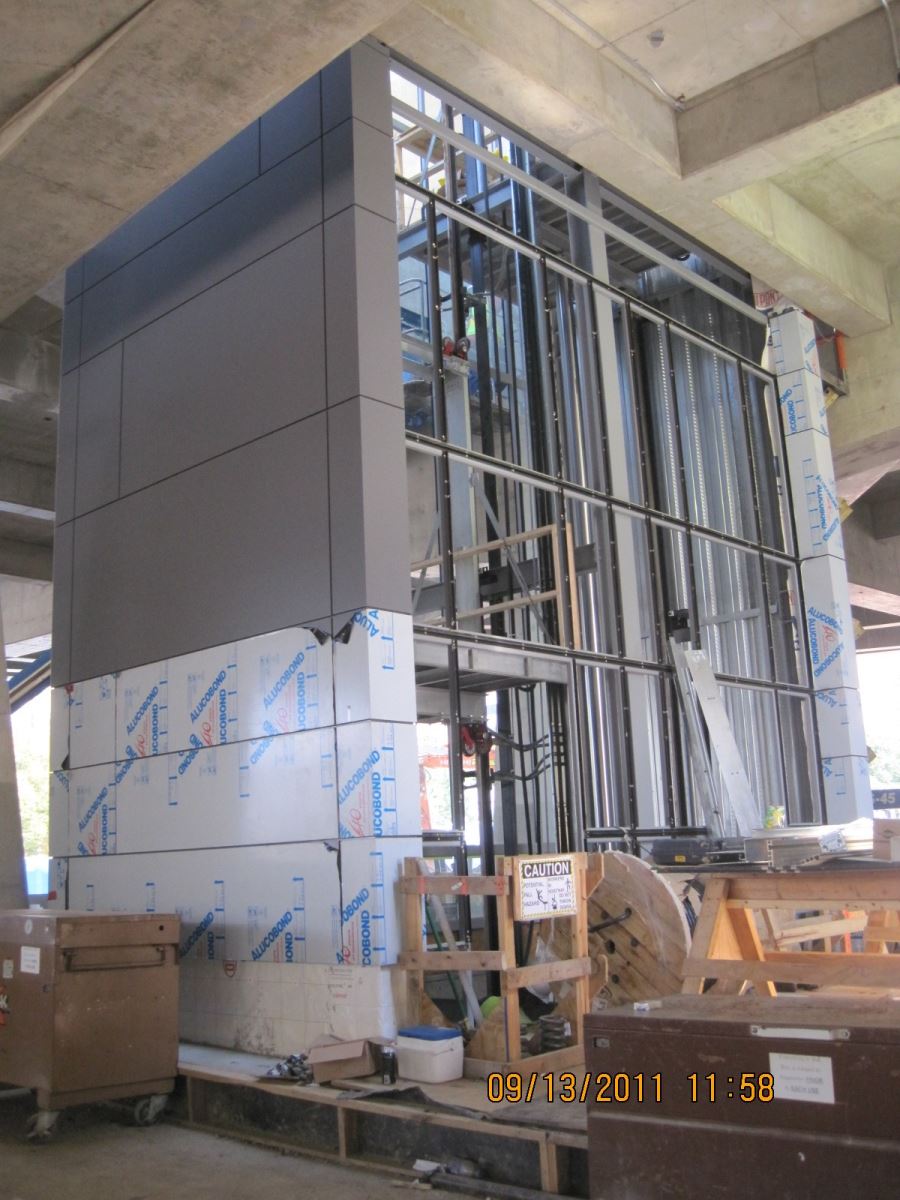

The glass and steel panel finishes subcontractor, GPR, is installing the final grey “skin” on the short sides of the elevator shafts. Glass will cover the two long sides of each shaft.

Silver Sprint Transit Center - construction image

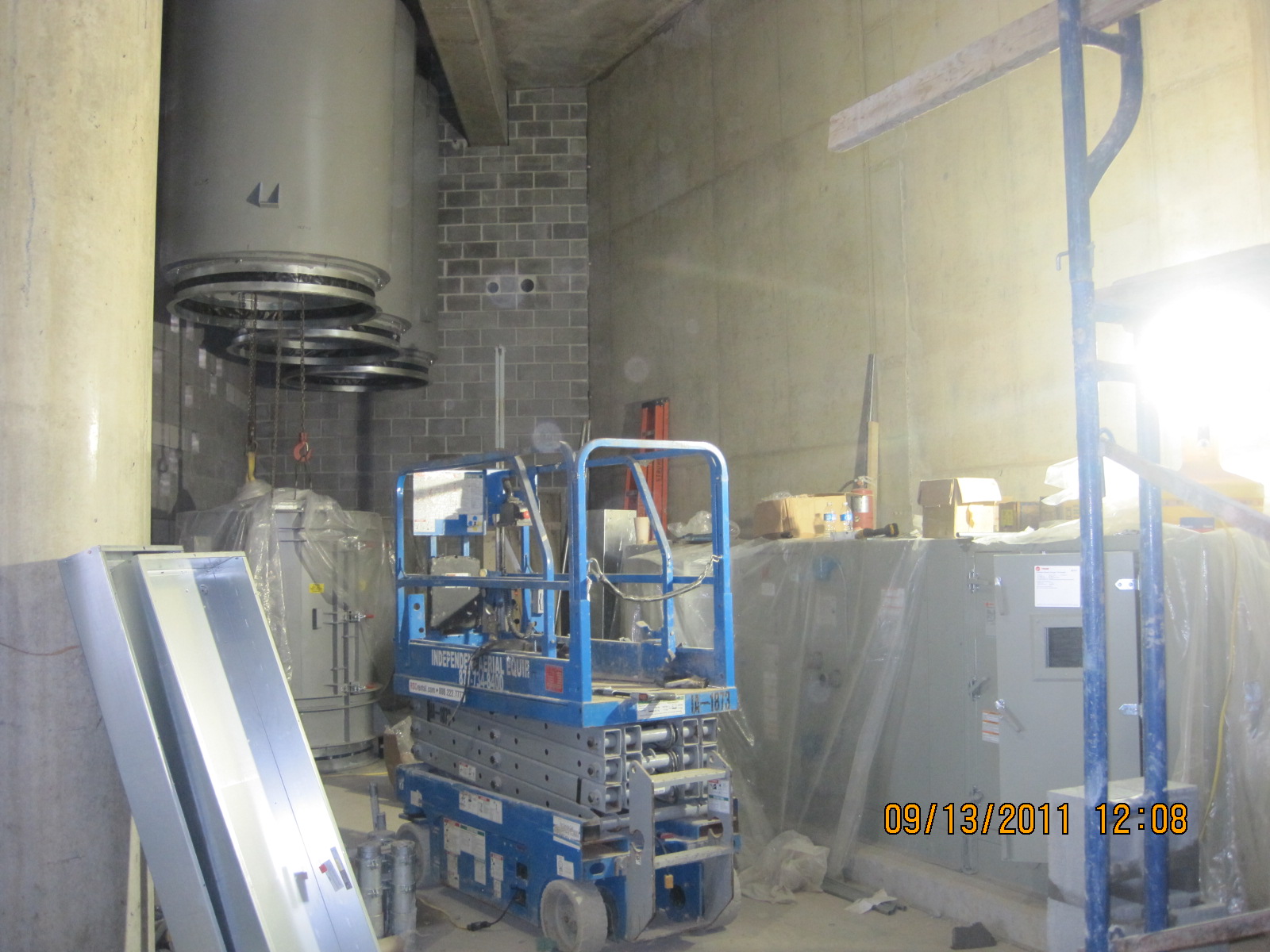

The HVAC contractor is installing the three large vane axial fans that will ventilate the lower two floors (Levels 305 and 330).

Silver Sprint Transit Center - construction image

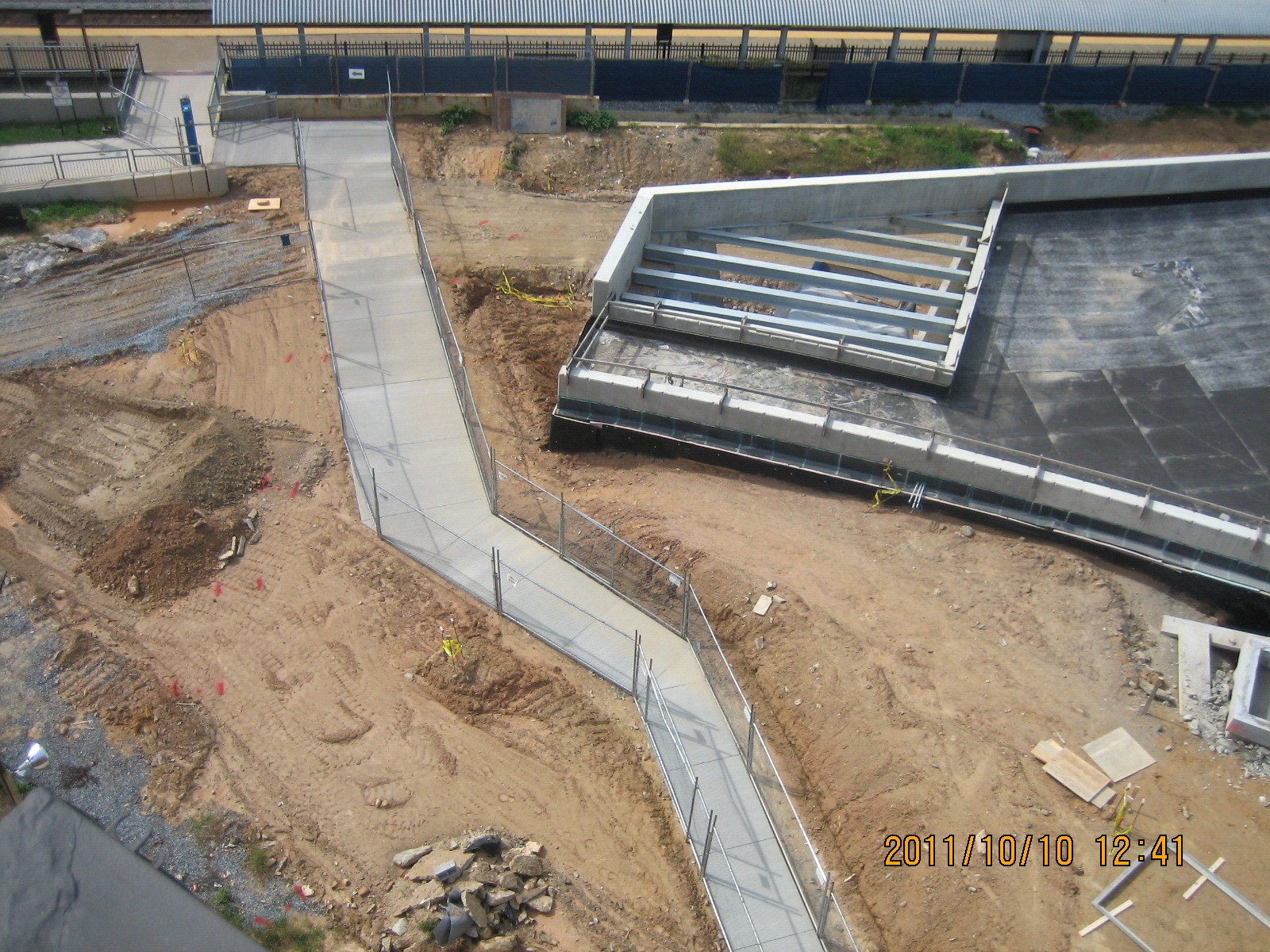

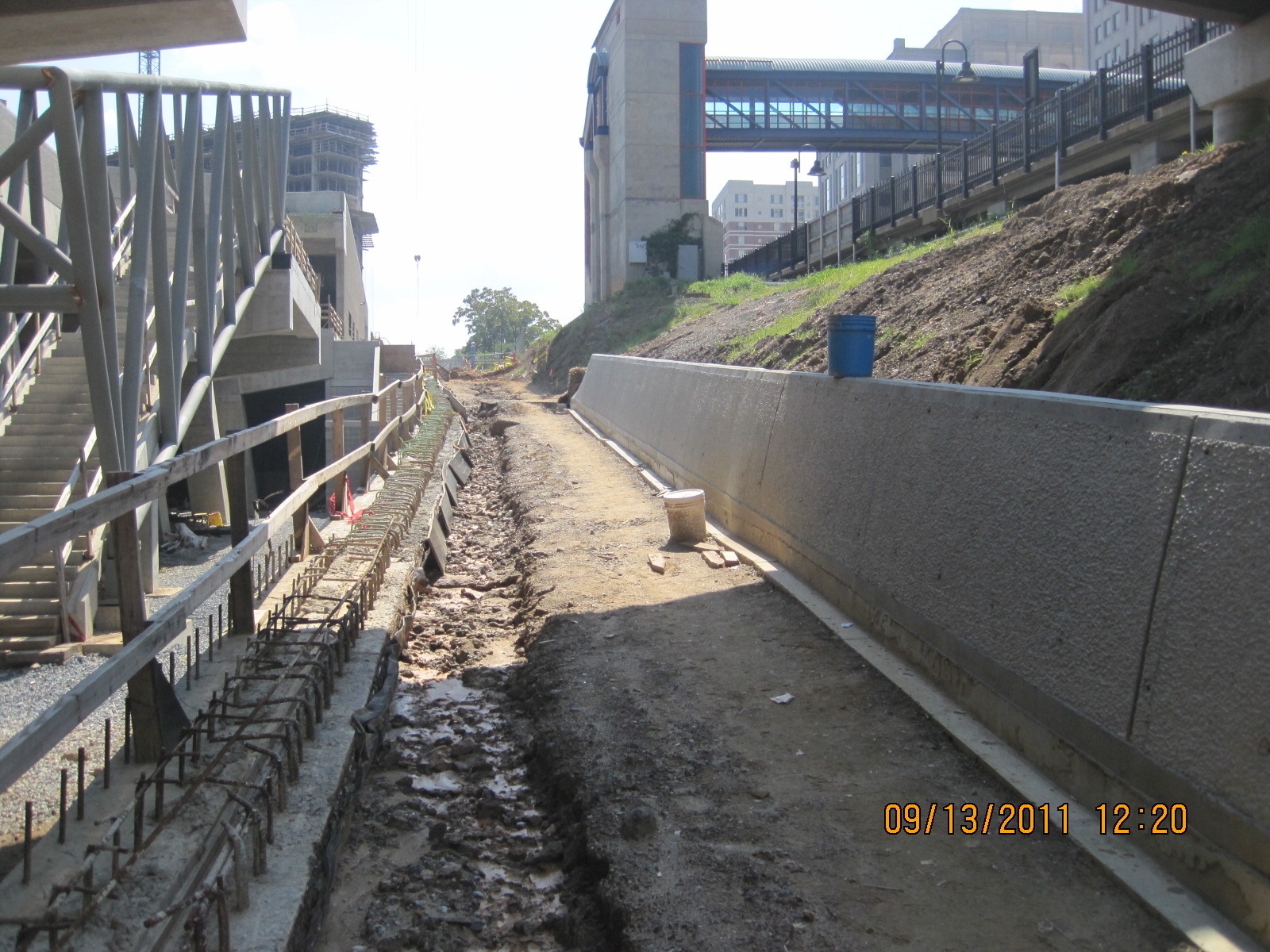

View of the Metropolitan Branch Trail (MBT). It runs between the Transit Center and the WMATA/ MARC train tracks.

Silver Sprint Transit Center - construction image

Finishing sidewalk on the 330 Level. The Contractor, AMA, is preparing to saw joints in the hardened concrete.

Silver Sprint Transit Center - construction image

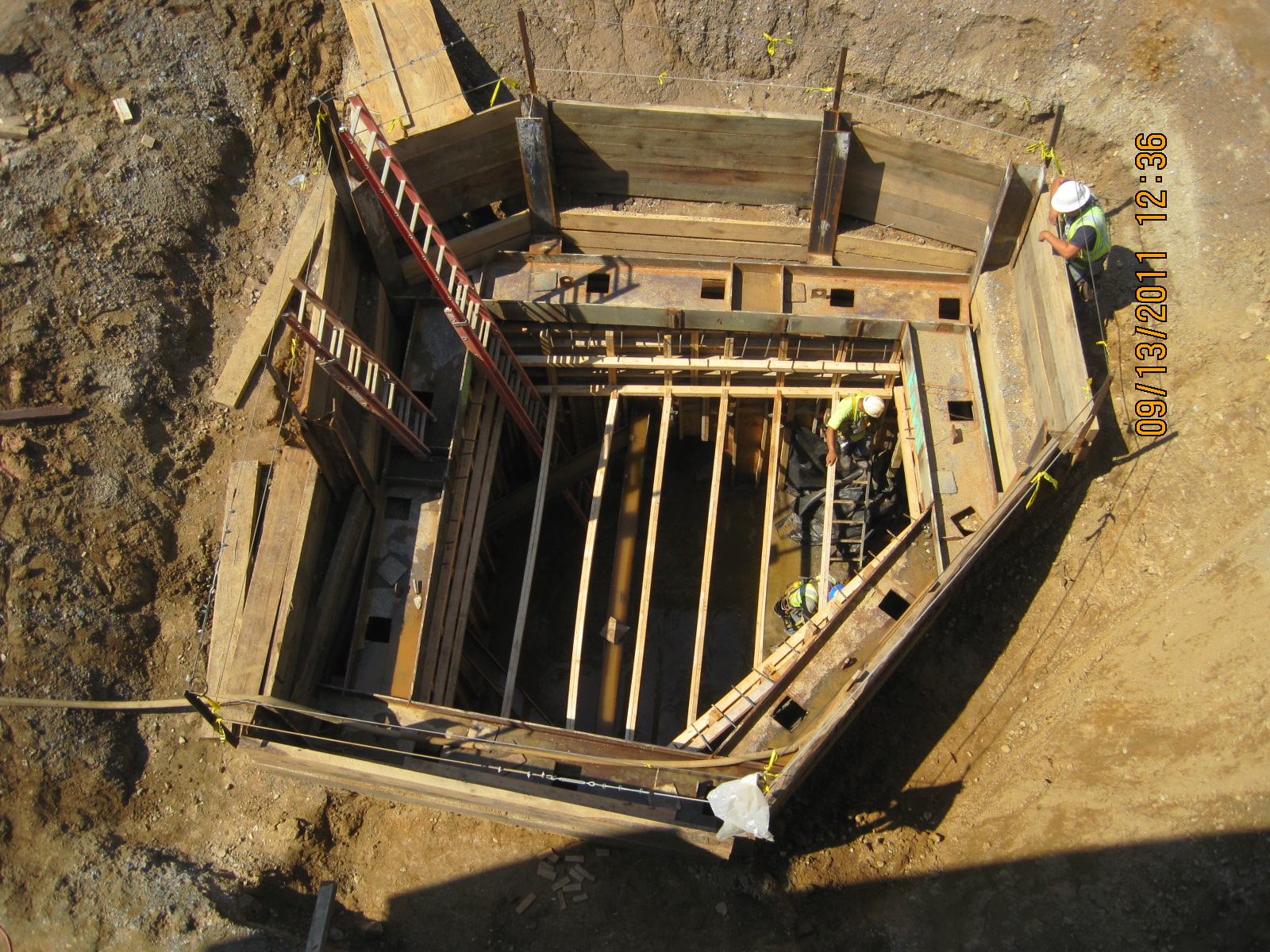

Final concrete work on the last deep storm drain manhole (MH 10) will finish during the next several weeks. That will be a big relief!!! It’s sad that the public will not see and appreciate the vast network of subterranean pipes and chambers holding water on site. Managing stormwater reduces flooding and the expense of building storm drain infrastructure downstream.

Silver Sprint Transit Center - construction image

AMA is working on curbs at Level 305, and will follow this with sidewalk in short order.

Silver Sprint Transit Center - construction image

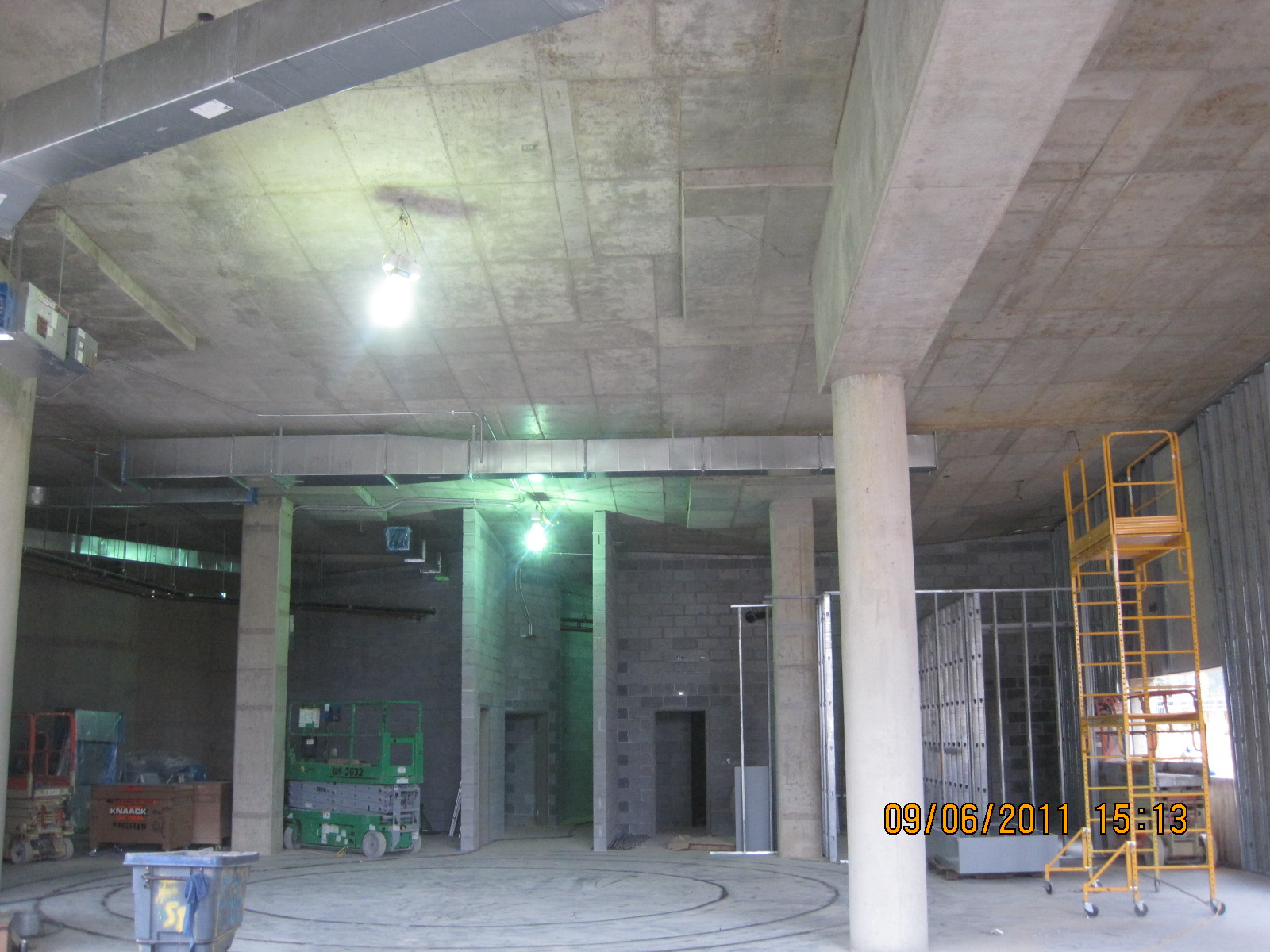

Concrete block work is almost finished at the middle (Level 330) offices and waiting room area, and the contractor is installing ductwork in the “conditioned” spaces. This area will contain the waiting room for the Intercity bus operations and the County’s TRiPS store operation, both of which will be located at the new Silver Spring Transit Center (SSTC).

Silver Sprint Transit Center - construction image

This view, facing north, shows that all of the structural steel for Canopy 4 (top level) is complete, and both elevator towers are completely enclosed.

Silver Sprint Transit Center - construction image

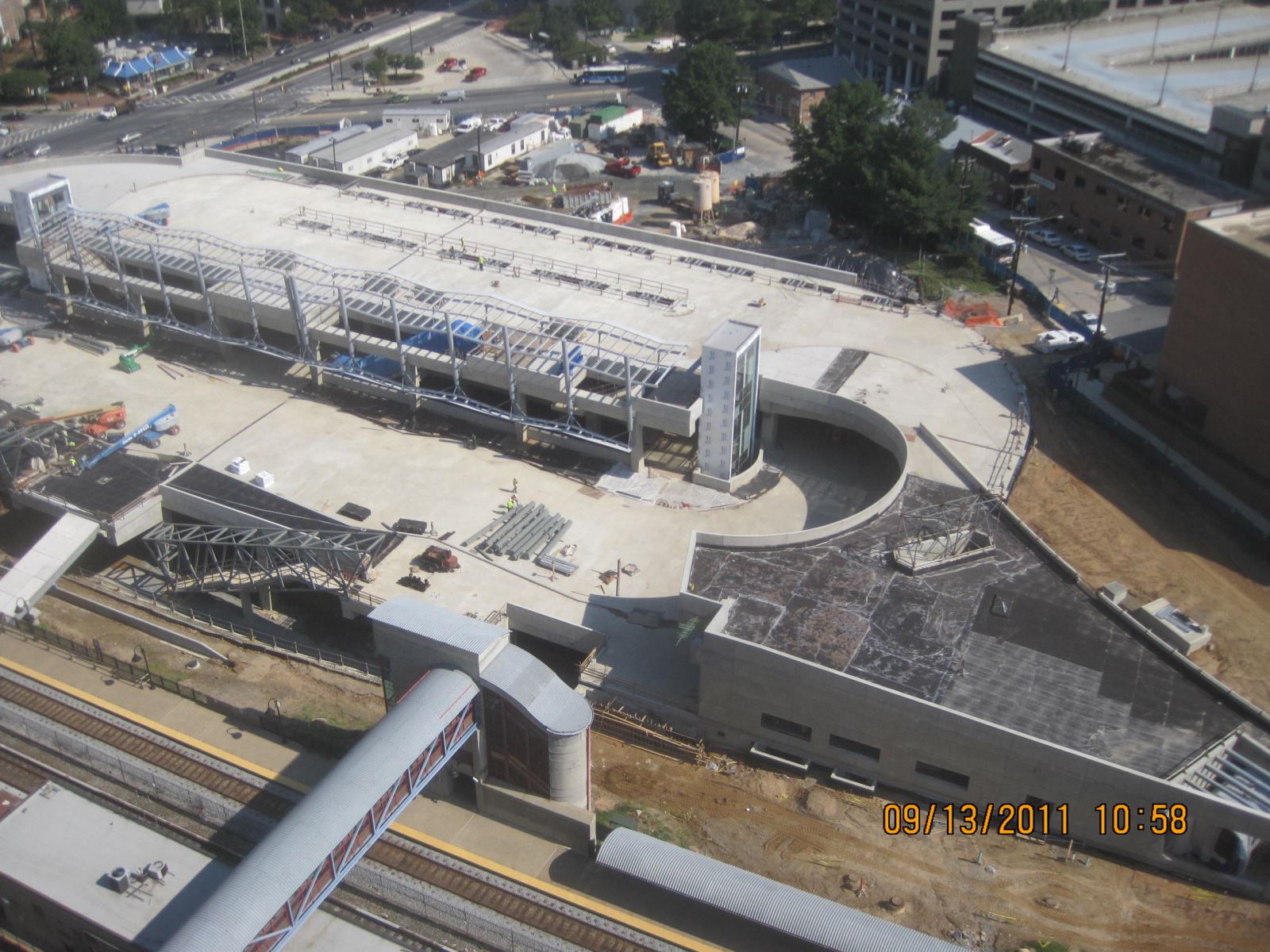

This view, facing northeast, shows all of the building except the northwest end. The tower for elevators 3 and 4 is in the center of the photo, and the large trusses for the enclosure at stair 1 are in place at the lower left.

Silver Sprint Transit Center - construction image

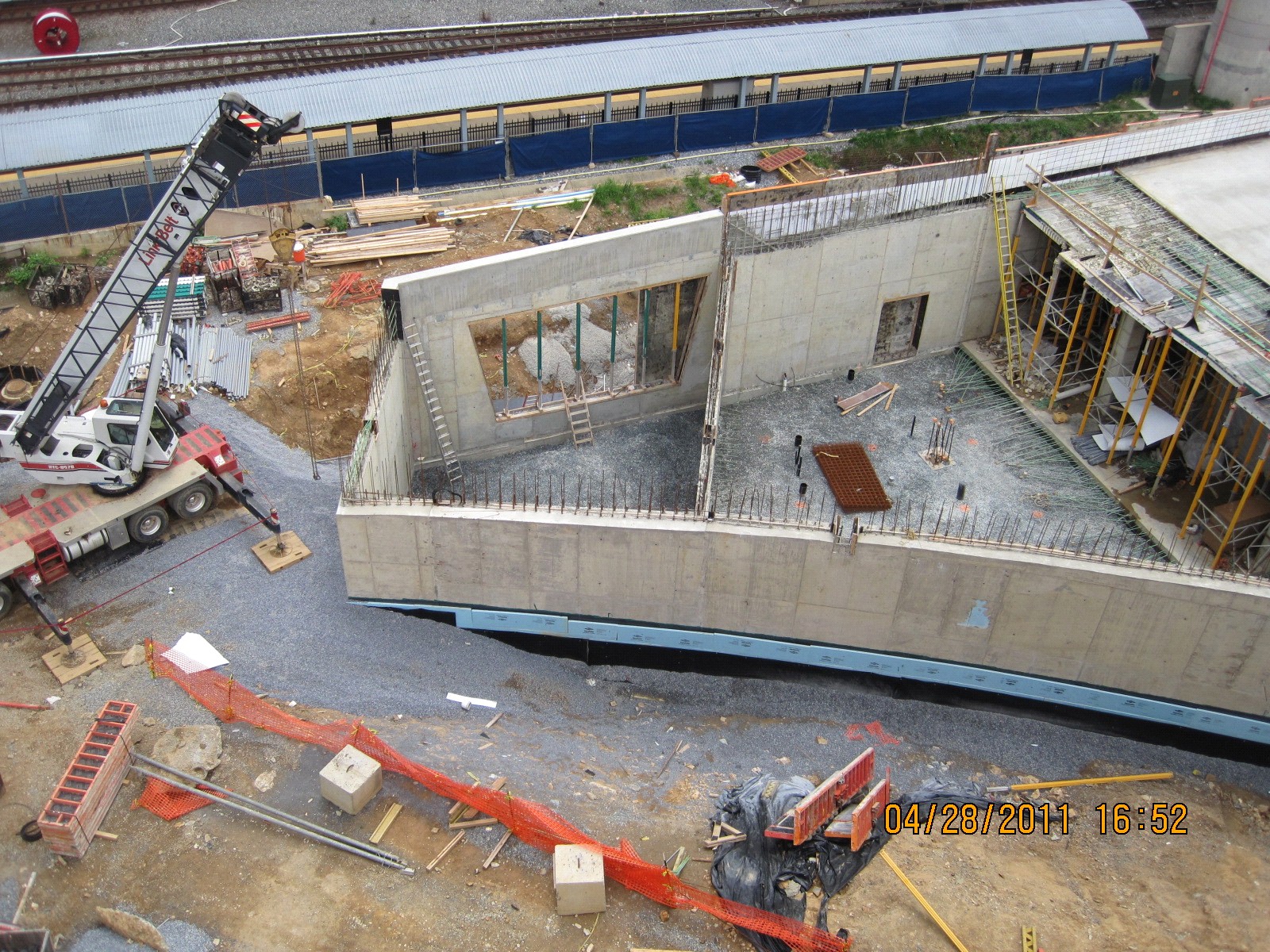

This photo shows the south end of the project. The room in the center of the photo, at the extreme south end of the building, will house the emergency generator.

Silver Sprint Transit Center - construction image

This face of one of the two glass elevator towers is almost completely enclosed.

Silver Sprint Transit Center - construction image

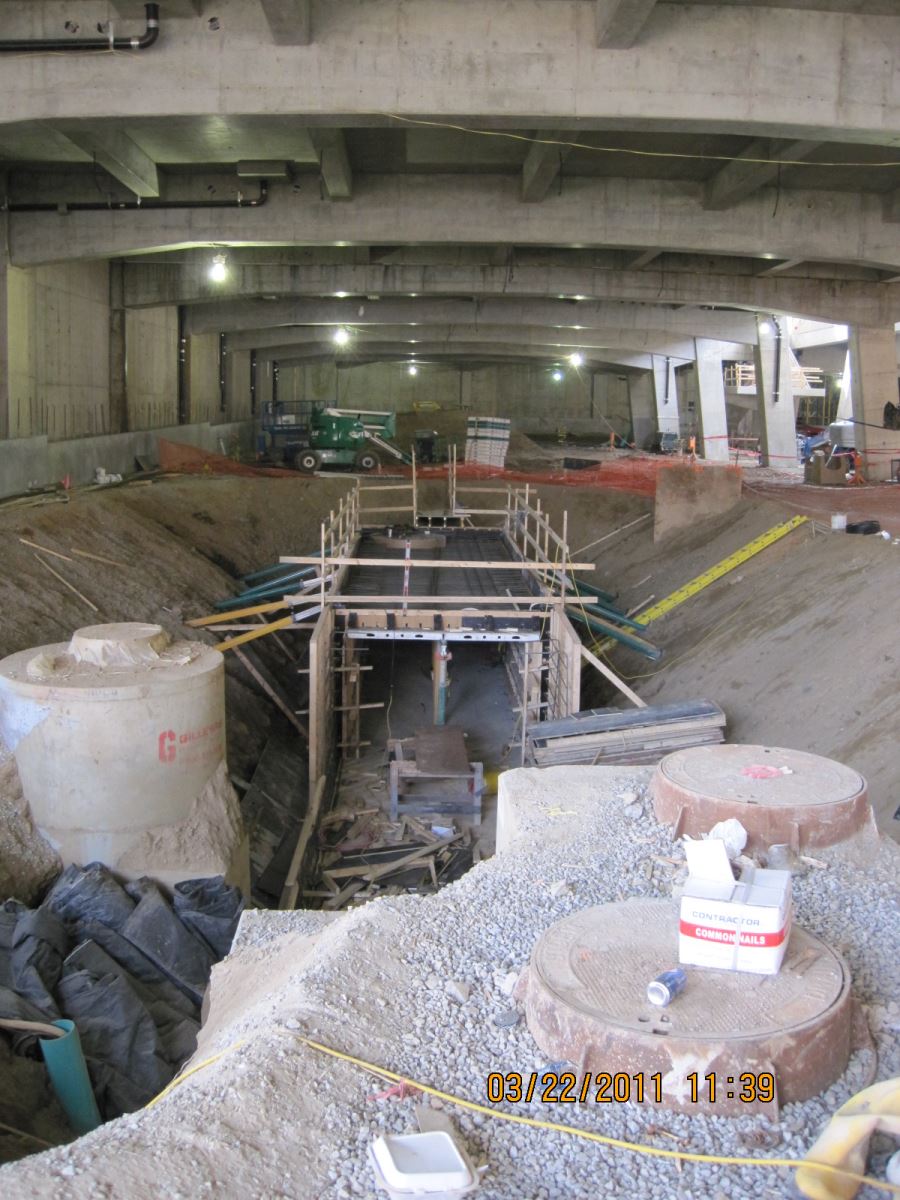

Work proceeds at the lowest (Elev. 305) level of the facility on the decorative concrete block air plenum, drainage pipe and inlets.

Silver Sprint Transit Center - construction image

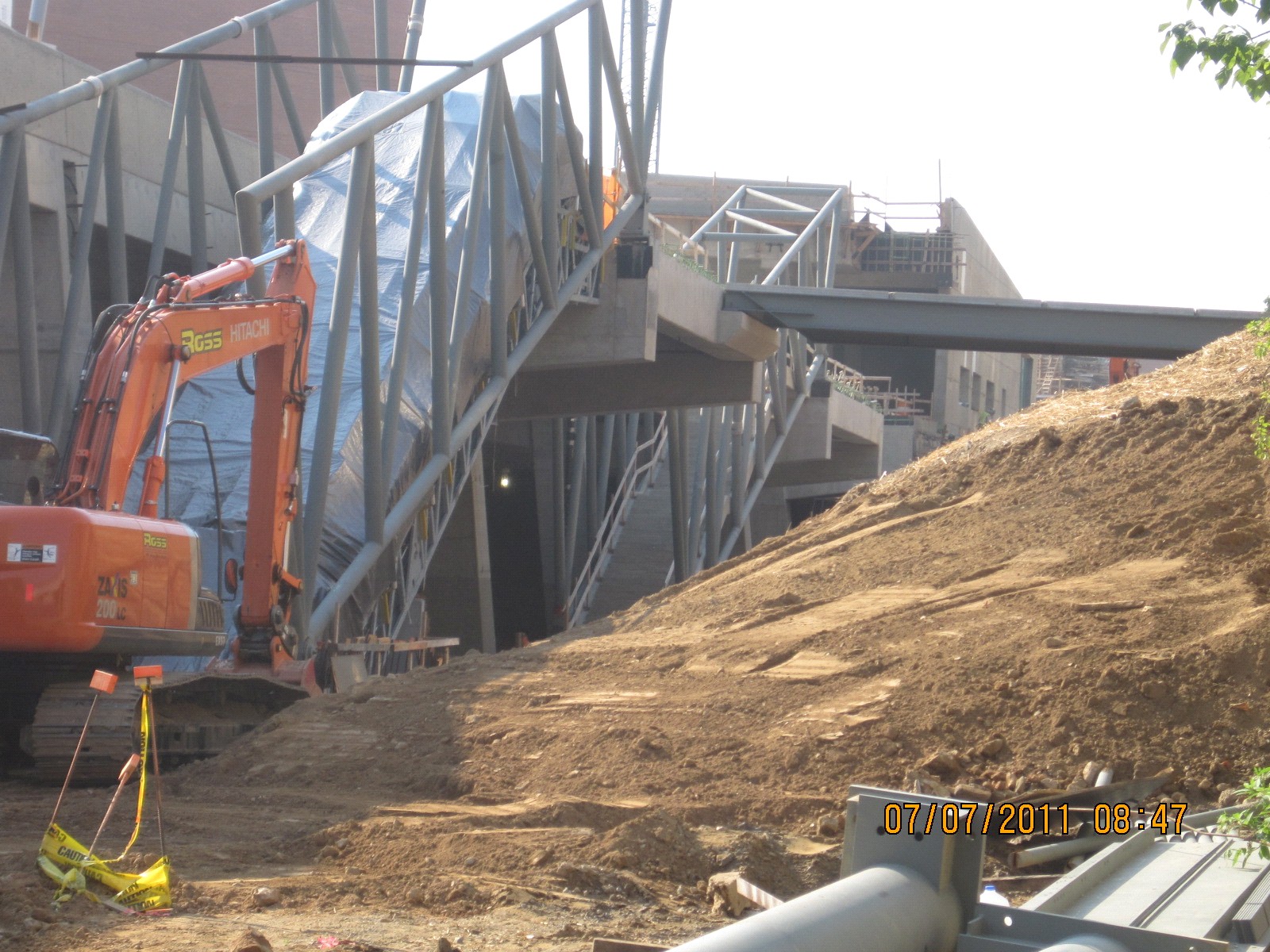

Large steel trusses and glass canopies shield the escalator and stairs adjacent to the railroad tracks.

Silver Sprint Transit Center - construction image

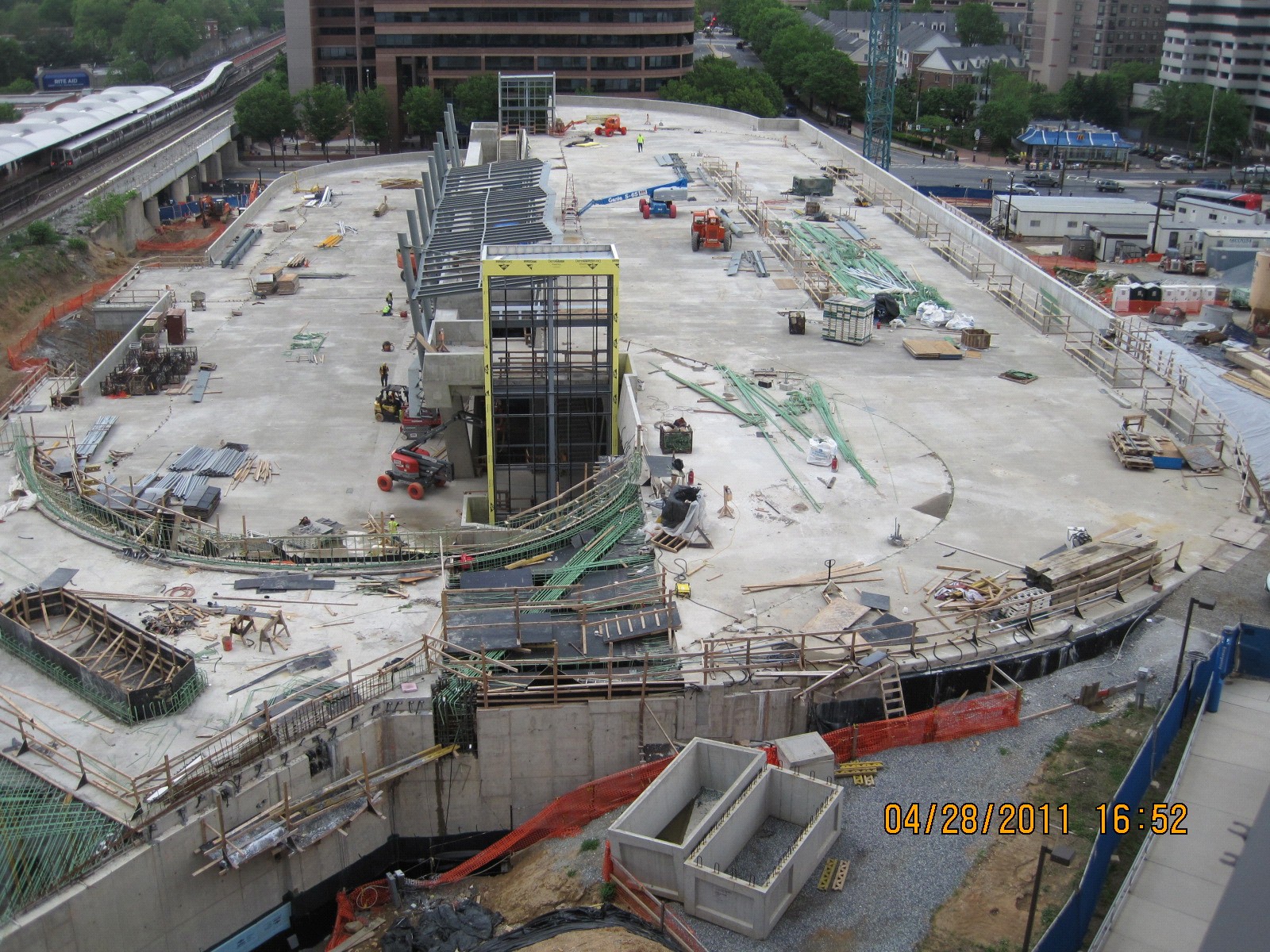

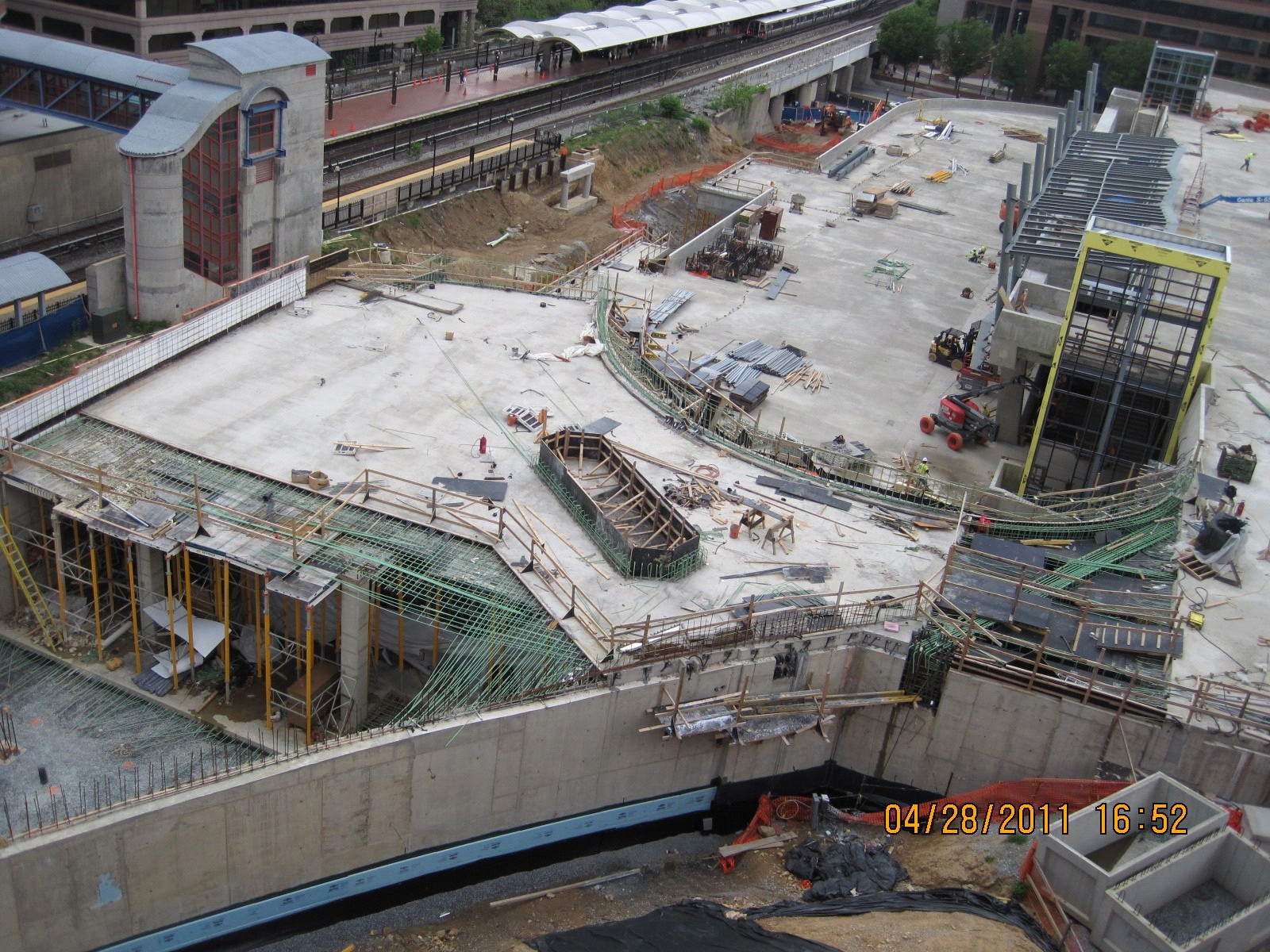

View of the top (Elev. 350) level of the transit center, facing northwest.

Silver Sprint Transit Center - construction image

The Marc train waiting area and the transit center offices will be constructed in this space.

Silver Sprint Transit Center - construction image

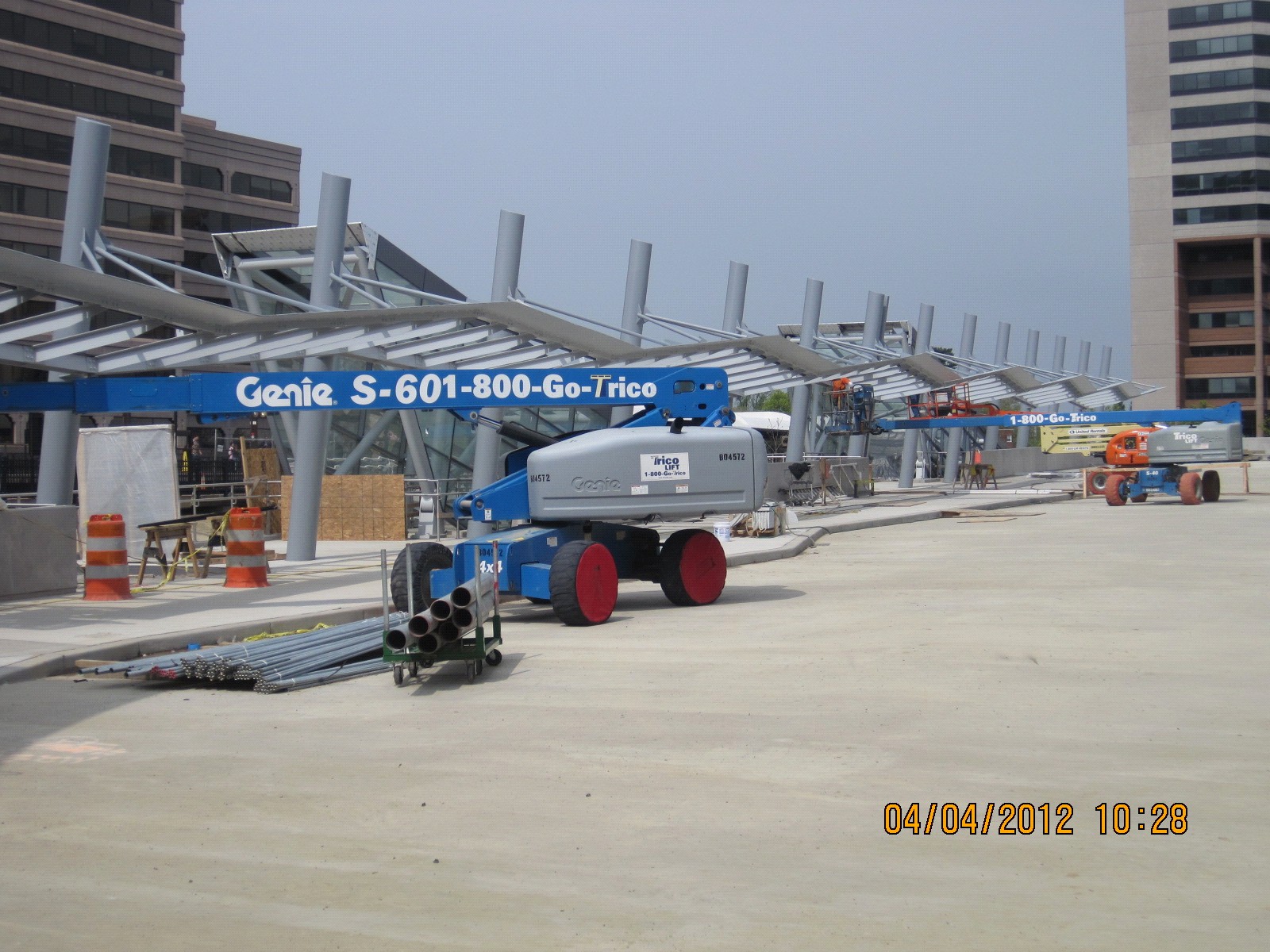

This photo shows the canopy steel on the middle (Elev. 330) level.

Silver Sprint Transit Center - construction image

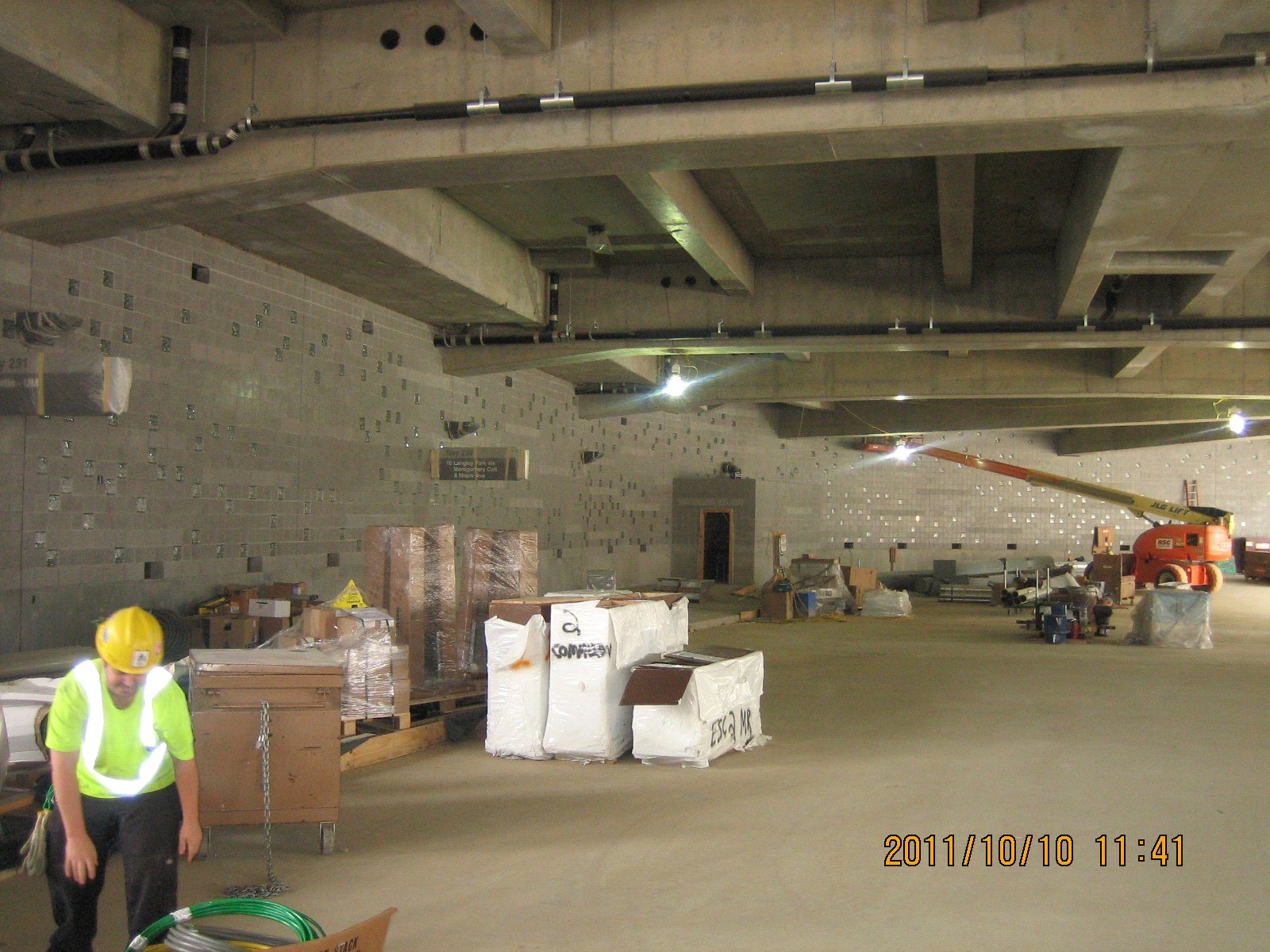

Decorative concrete block work is almost finished on the project. This view shows the block on the lowest level (Level 305).

Silver Sprint Transit Center - construction image

This view, facing northwest, shows that most of the structural steel for Canopy 4 is in place, and structural steel erection for the two elevator towers is complete.

Silver Sprint Transit Center - construction image

This view, facing west, shows that Facchina is still forming and placing wall and slab concrete in the office, equipment room and waiting room areas. The base for the ventilation tower is in the center of the photo.

Silver Sprint Transit Center - construction image

This photo shows the south end of the project. The room on the left, at the extreme south end of the project, will house the emergency generator.

Silver Sprint Transit Center - construction image

This view, facing north, shows the structural steel for canopies 3 (330 Level) and 4 (350 Level).

Silver Sprint Transit Center - construction image

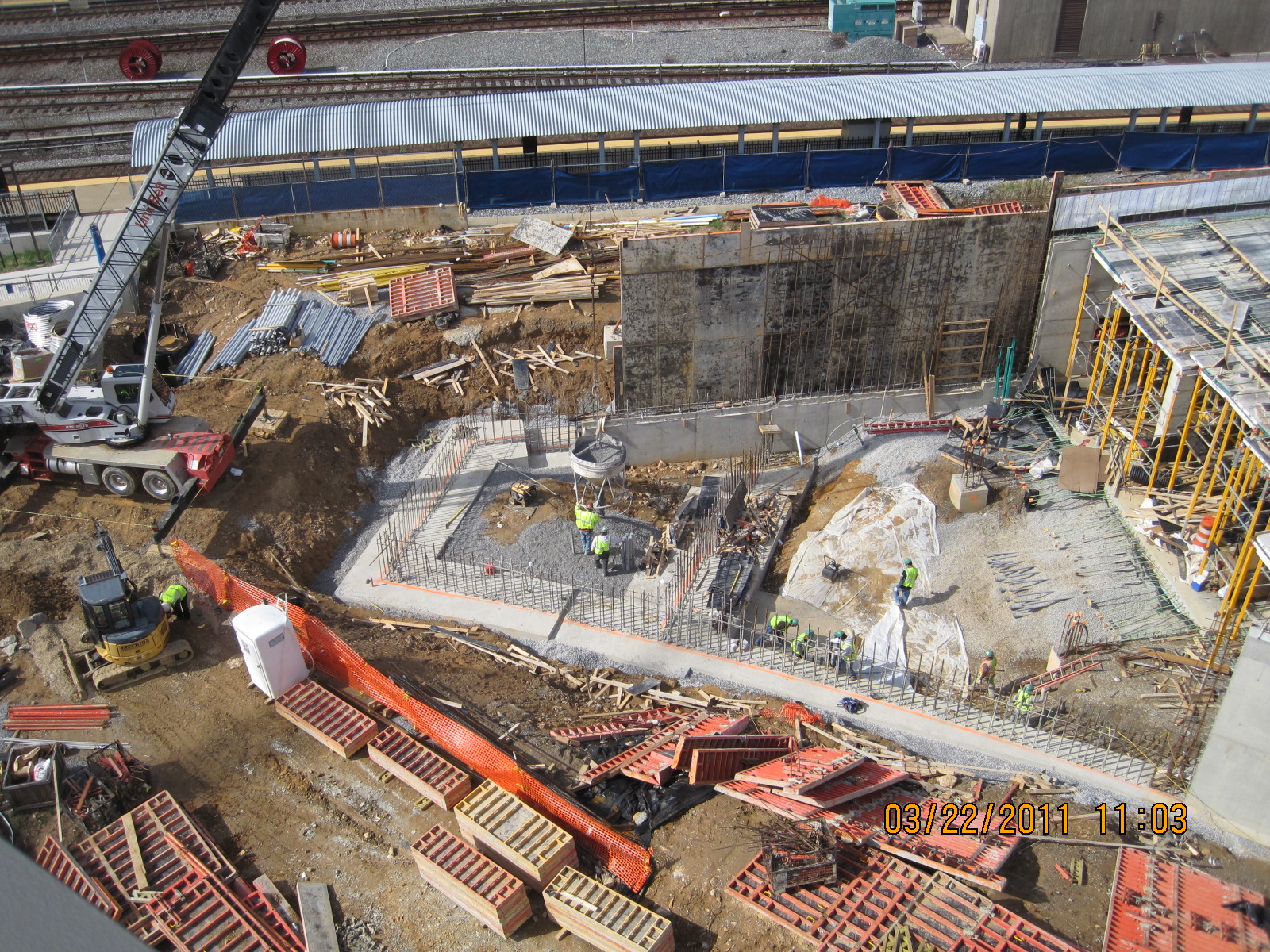

The large stormwater management vault under the 305 Level slab in this area is complete and backfilled.

Silver Sprint Transit Center - construction image

Overall view of the “Kiss and Ride” top level.

Silver Sprint Transit Center - construction image

South end of the project, where the underground offices, rest rooms and passenger waiting areas will reside.

Silver Sprint Transit Center - construction image

Lowering an escalator into position.

Silver Sprint Transit Center - construction image

Placing one of the five escalators on its bearings.

Silver Sprint Transit Center - construction image

Ready to place wall and roof deck concrete at one of the deep underground storm water management vaults.

Silver Sprint Transit Center - construction image

Placing one of the five escalators on its bearings.

Silver Sprint Transit Center - construction image

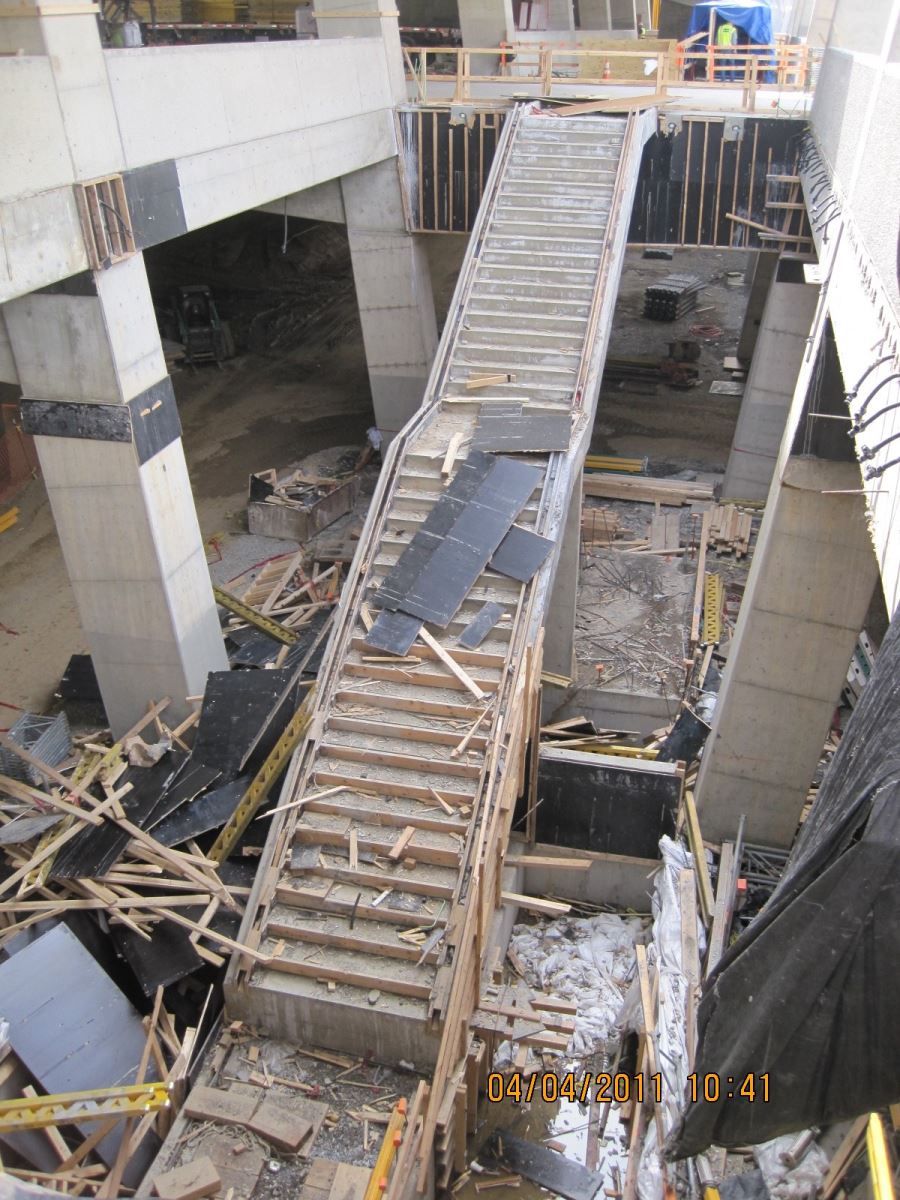

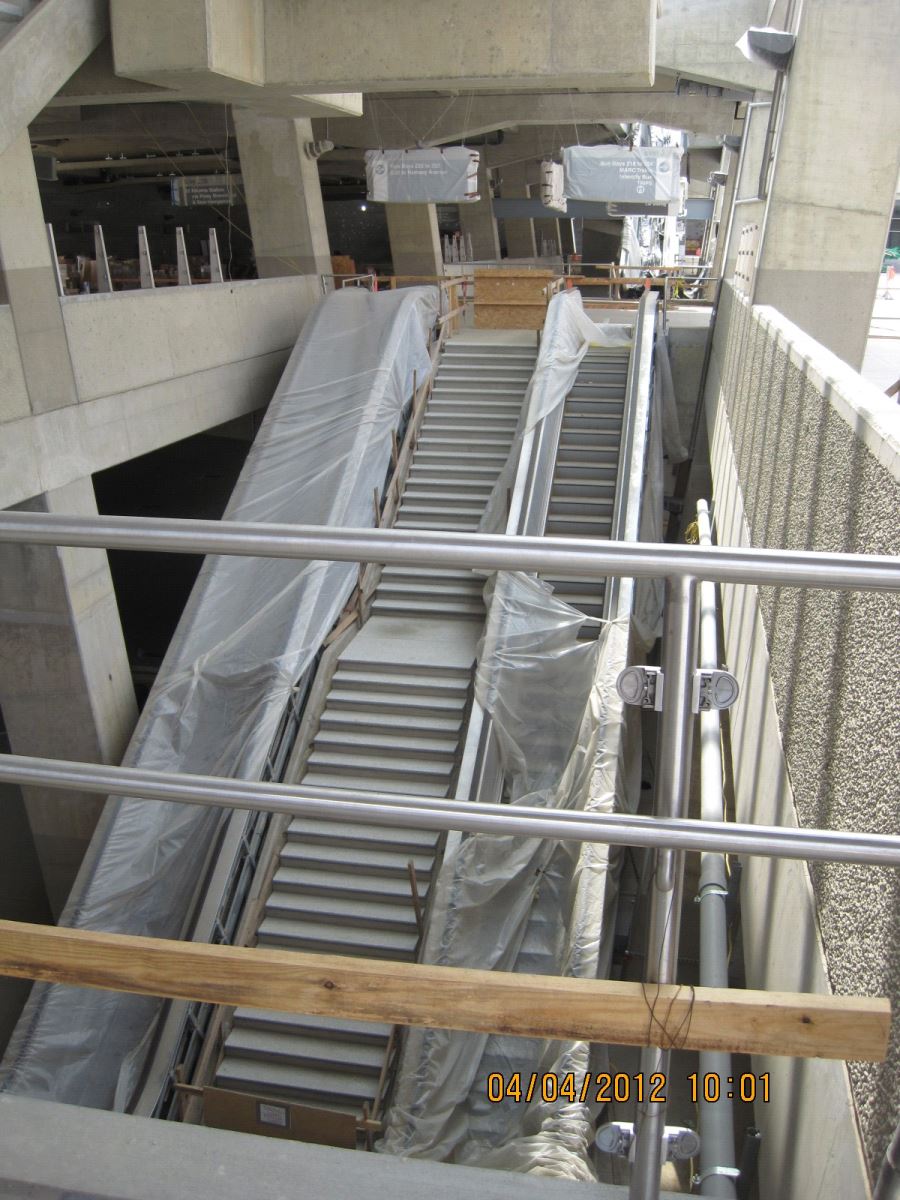

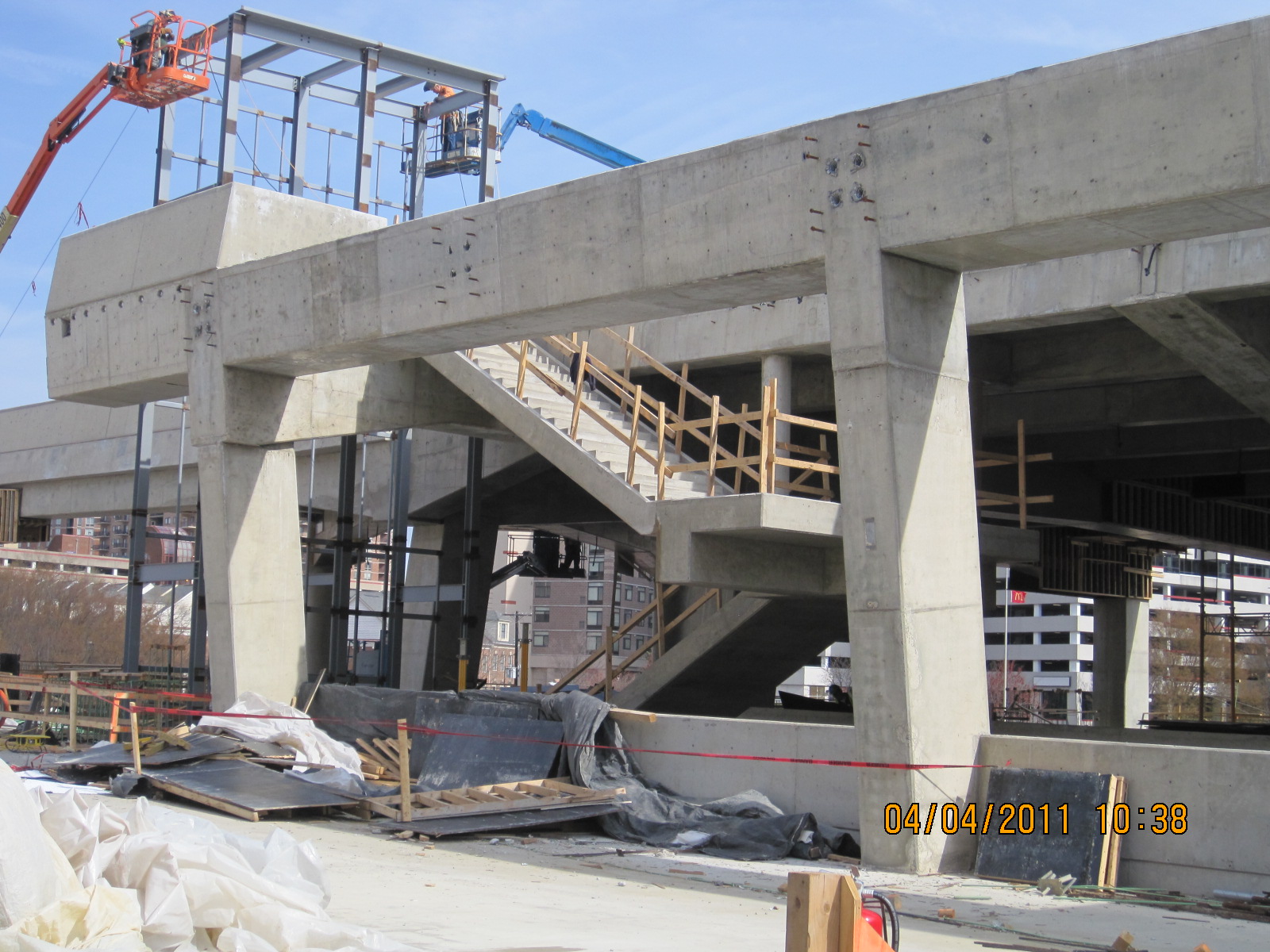

Staircase enabling passengers to move between the middle and top levels of the building. The finished steps will be granite.

Silver Sprint Transit Center - construction image

Installing the first column for the main glass curtain wall and canopy.

Silver Sprint Transit Center - construction image

One of the elevator towers, viewed from the middle level.

Silver Sprint Transit Center - construction image

This is one of the two large stormwater management vaults under the 305 Level slab.

Silver Sprint Transit Center - construction image

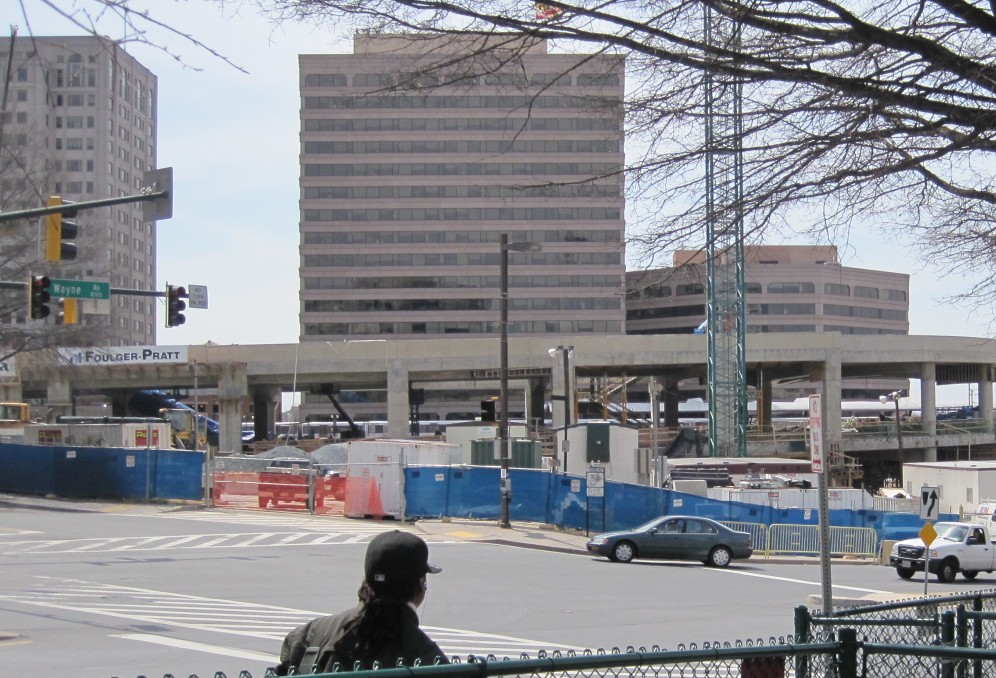

Street level view of the building, displaying its low-profile when viewed from the intersection of Wayne and Ramsey streets.

Silver Sprint Transit Center - construction image

Staircase to move passengers between the lowest and middle levels of the building. The finished steps will be granite.

Silver Sprint Transit Center - construction image

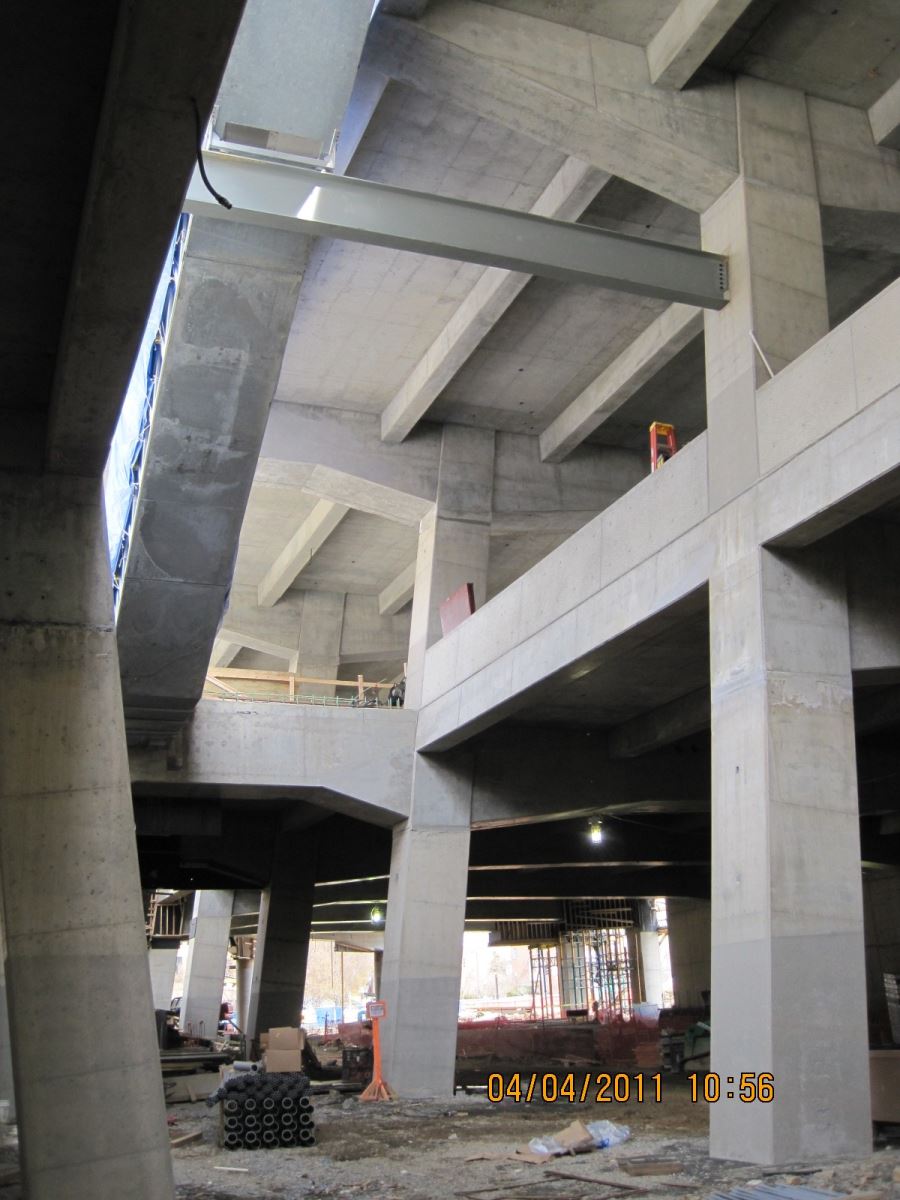

Superstructure slabs, beams and columns viewed from the lowest level. Escalator to transport passengers between the second and third levels is visible at the upper left.

Silver Sprint Transit Center - construction image

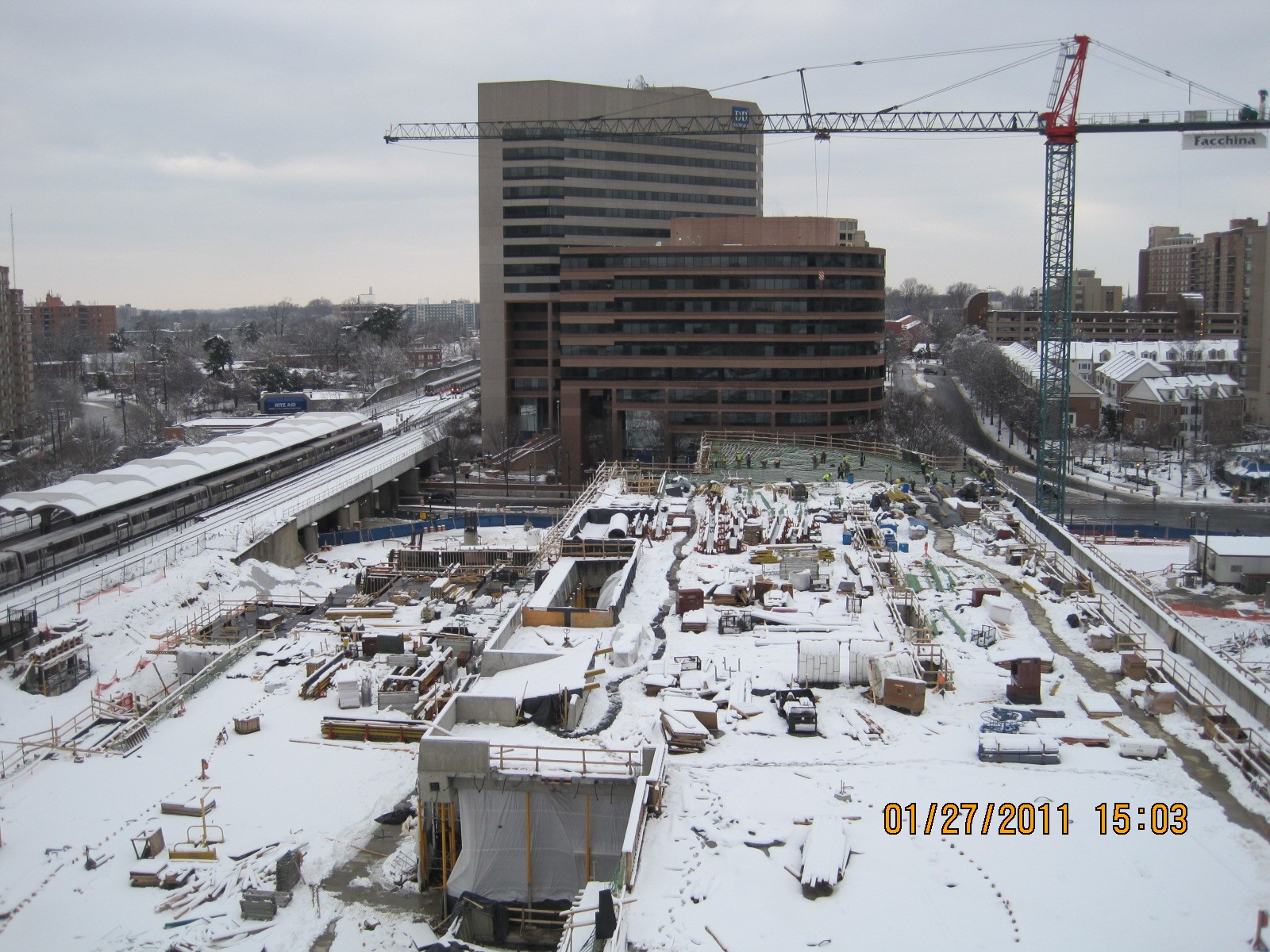

Facchina prepares to place concrete for superstructure pour 2D, in the top center area of the photo, on January 27.

Silver Sprint Transit Center - construction image

This photo shows Facchina workers preparing for superstructure pour 1G.

Silver Sprint Transit Center - construction image

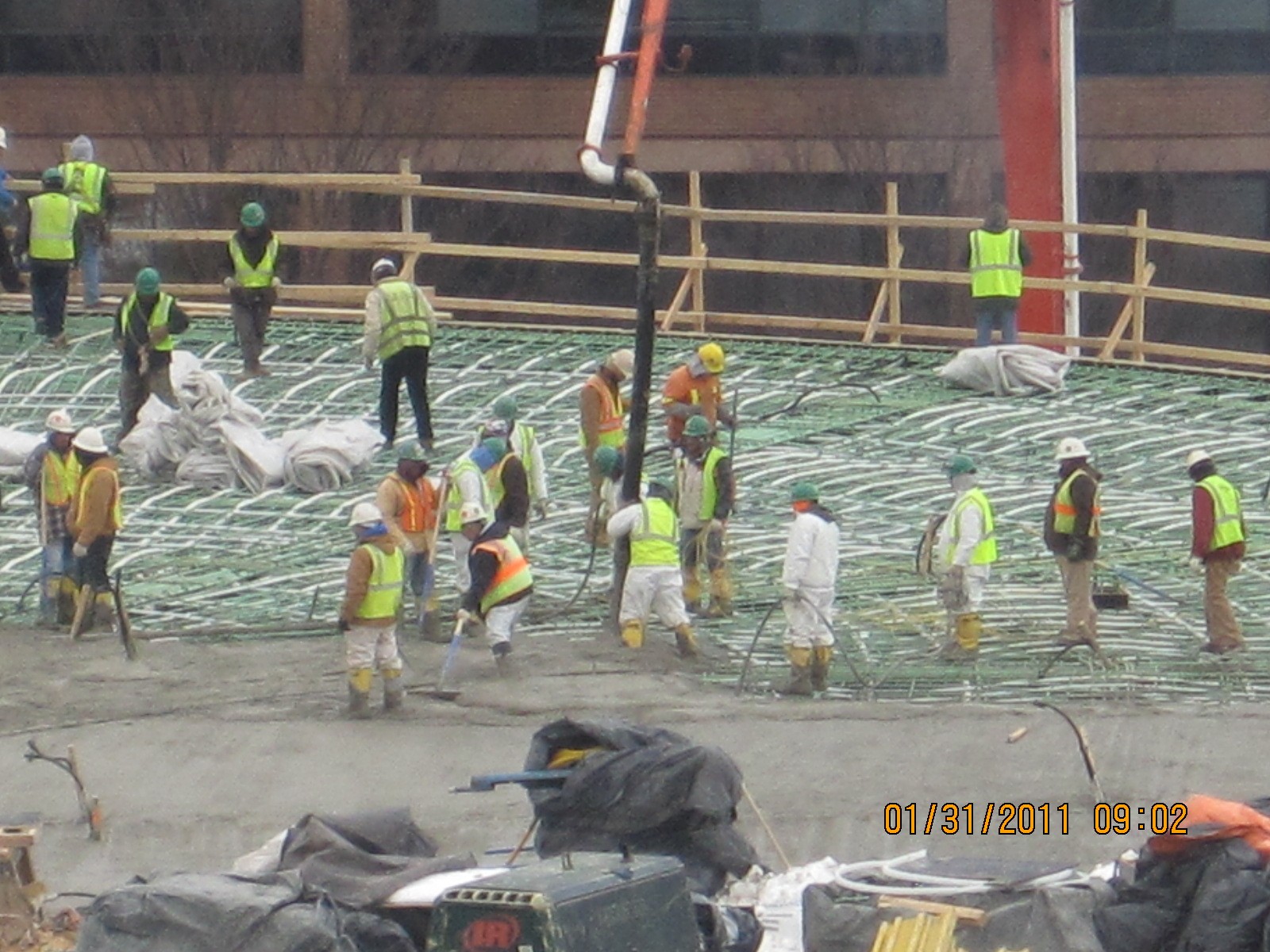

Placing superstructure concrete for pour 2D. This was the 11th of 14 large superstructure concrete pours on the project.

Silver Sprint Transit Center - construction image

Facchina has placed about half the concrete in the forms for superstructure pour 2B. The deck is 10” thick, the girders are 6 feet deep, and they placed 1,200 CY of 8,000 psi concrete that day. The pump is stretching at its limit to place concrete at the far side of the pour.

Silver Sprint Transit Center - construction image

Placing and finishing superstructure concrete for pour 1D.

Silver Sprint Transit Center - construction image

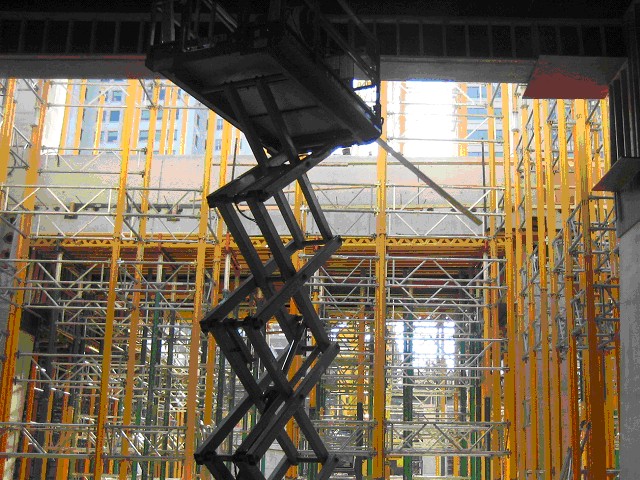

View of the scaffolding used to support deck, beam and girder forms that will contain the superstructure concrete.

Silver Sprint Transit Center - construction image

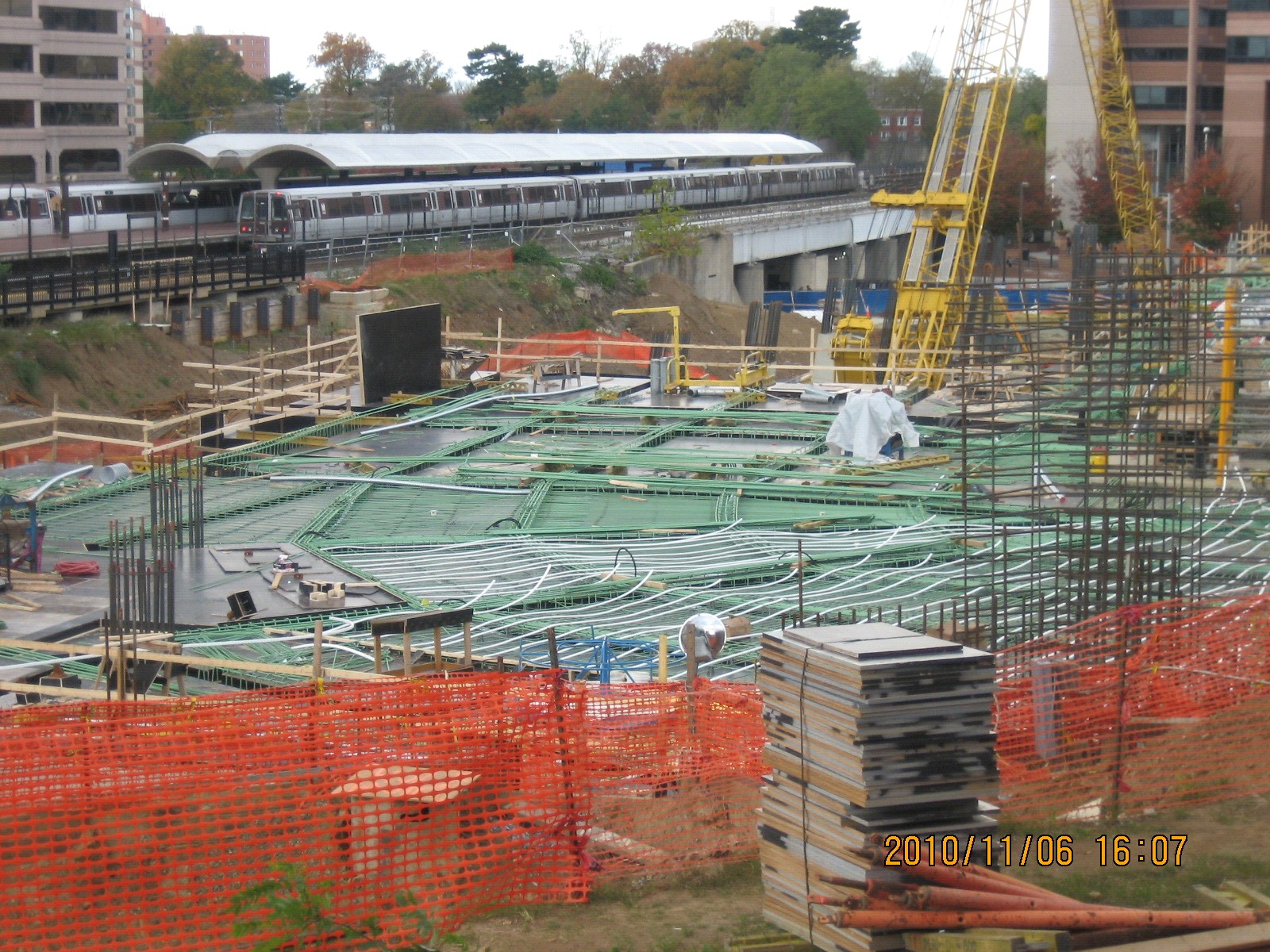

View of slab forms, epoxy coated rebar and plastic post-tensioning ducts for the superstructure concrete pours.

Silver Sprint Transit Center - construction image

View of column and superstructure formwork across most of the site.

Silver Sprint Transit Center - construction image

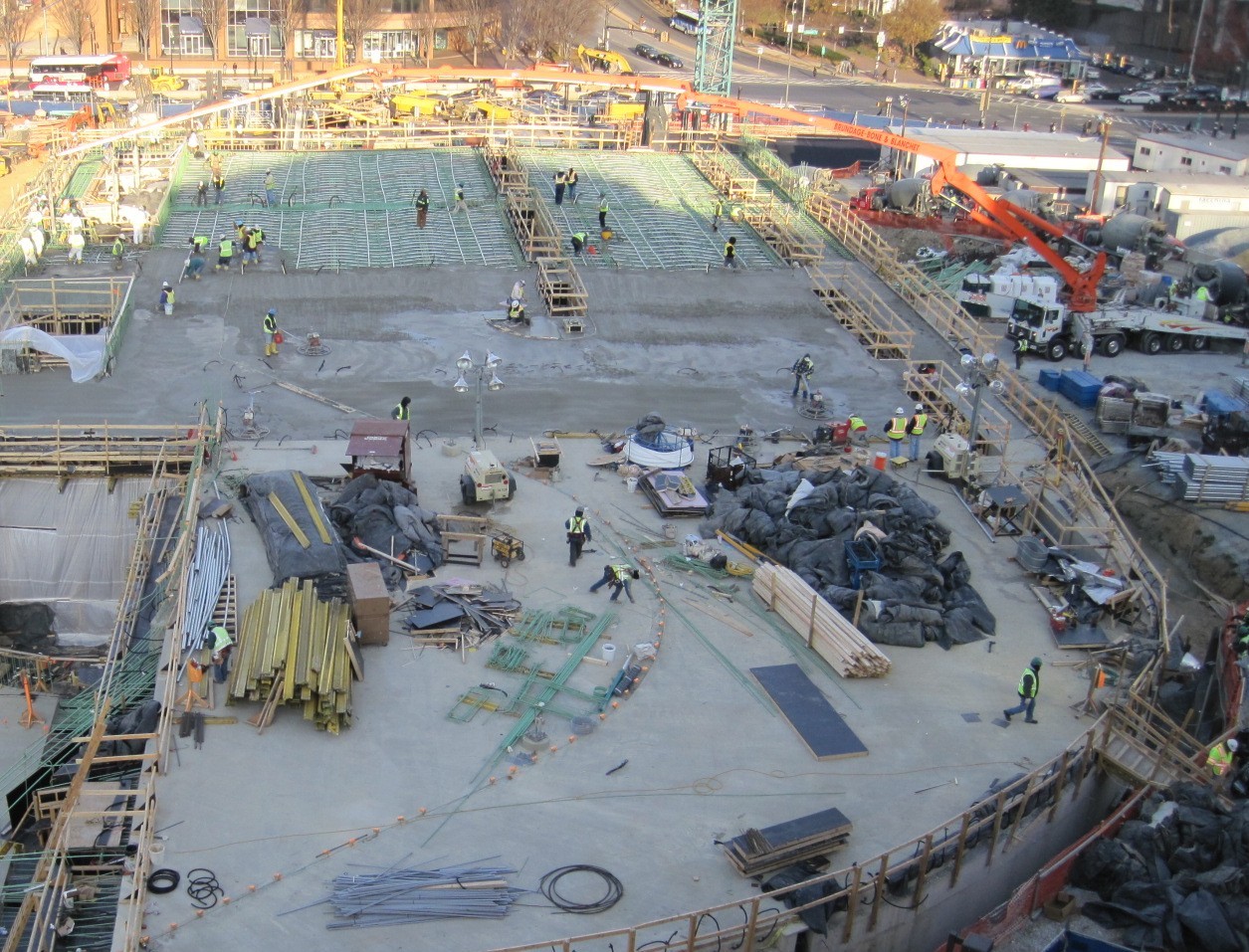

Placing concrete for superstructure concrete pour.

Silver Sprint Transit Center - construction image

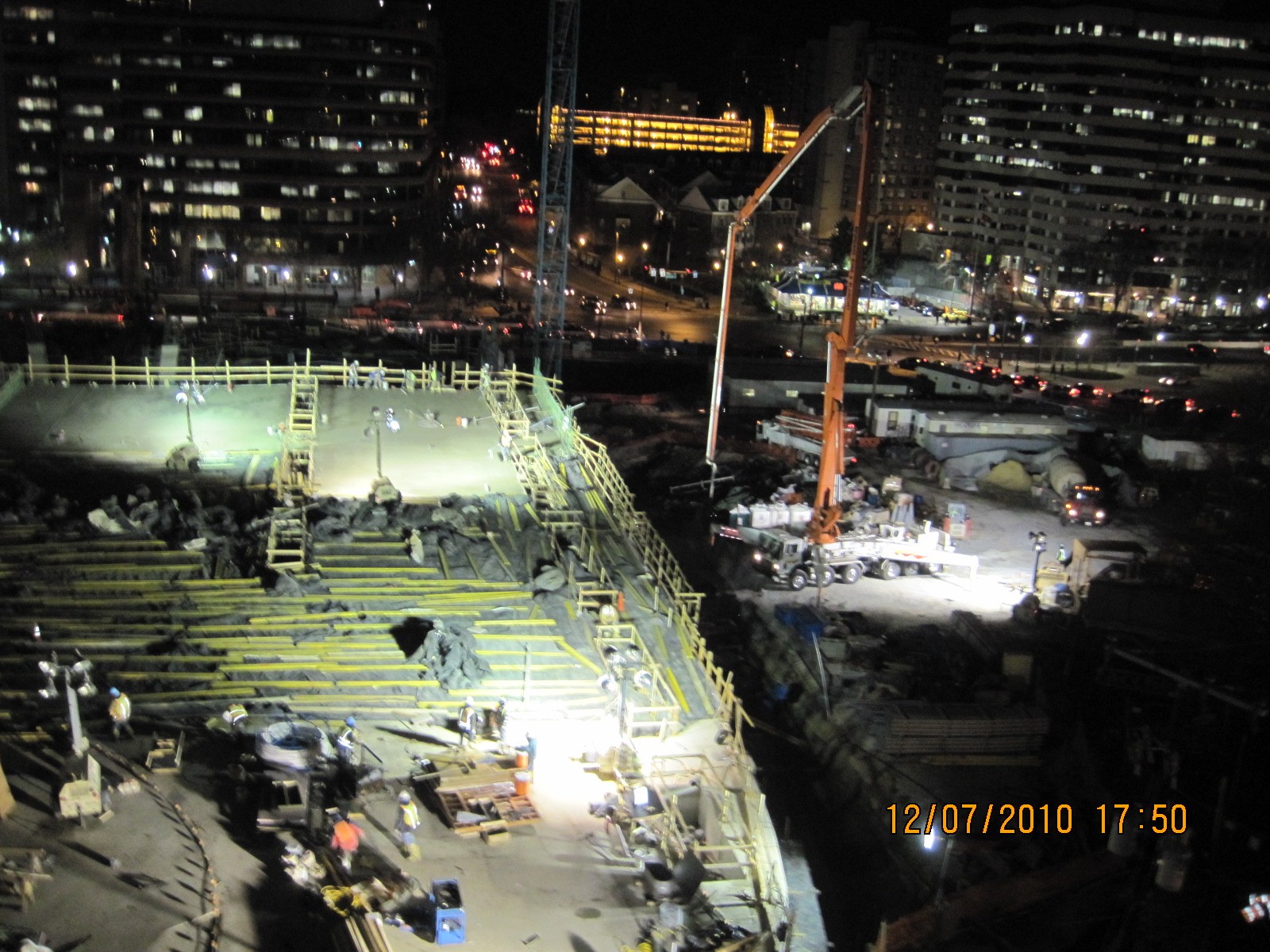

This photo was taken in the early evening at the end of the largest superstructure concrete pour on the project. The concrete pump is on the right, and the workers are troweling the last area of wet concrete.

Silver Sprint Transit Center - construction image

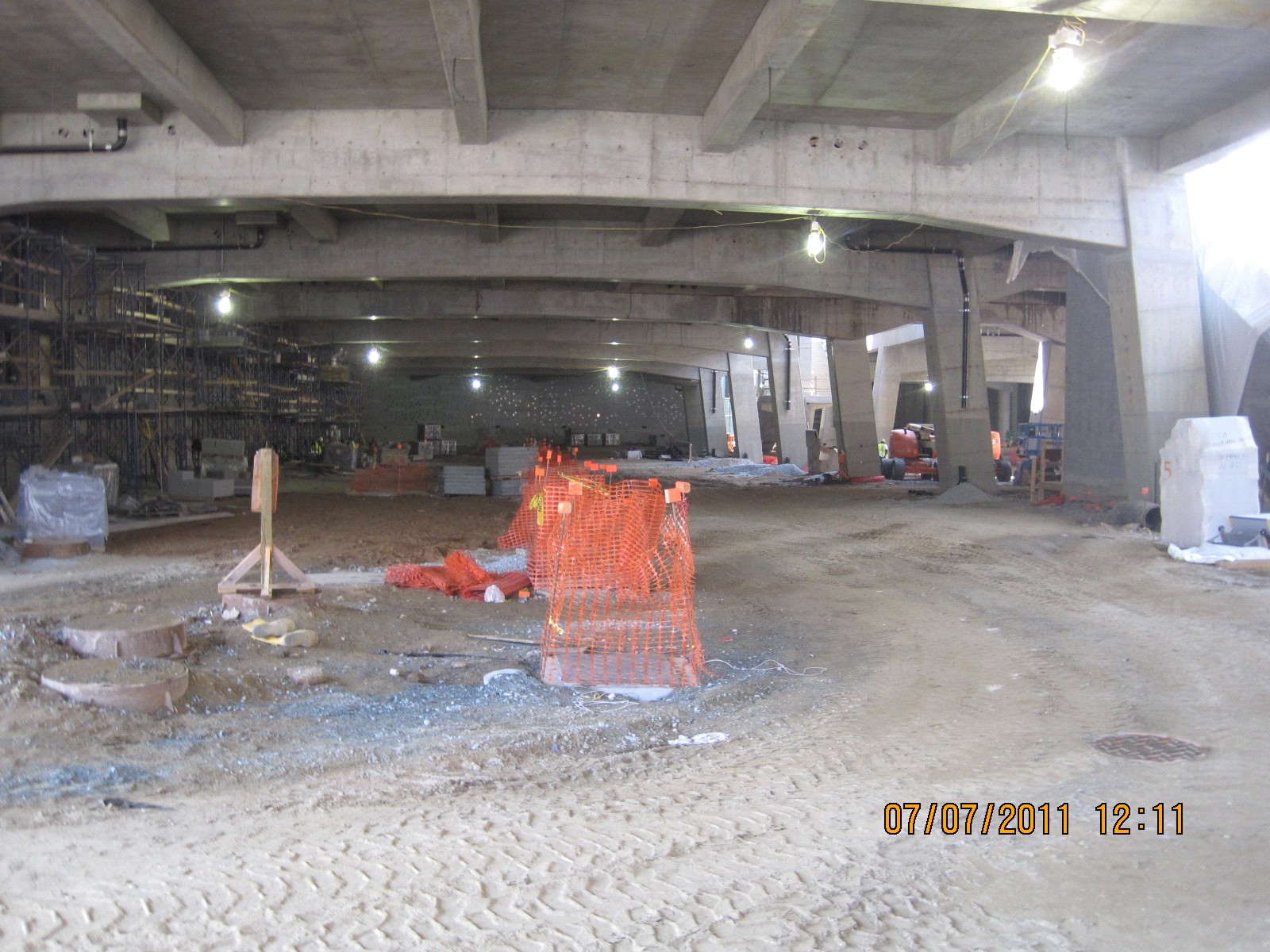

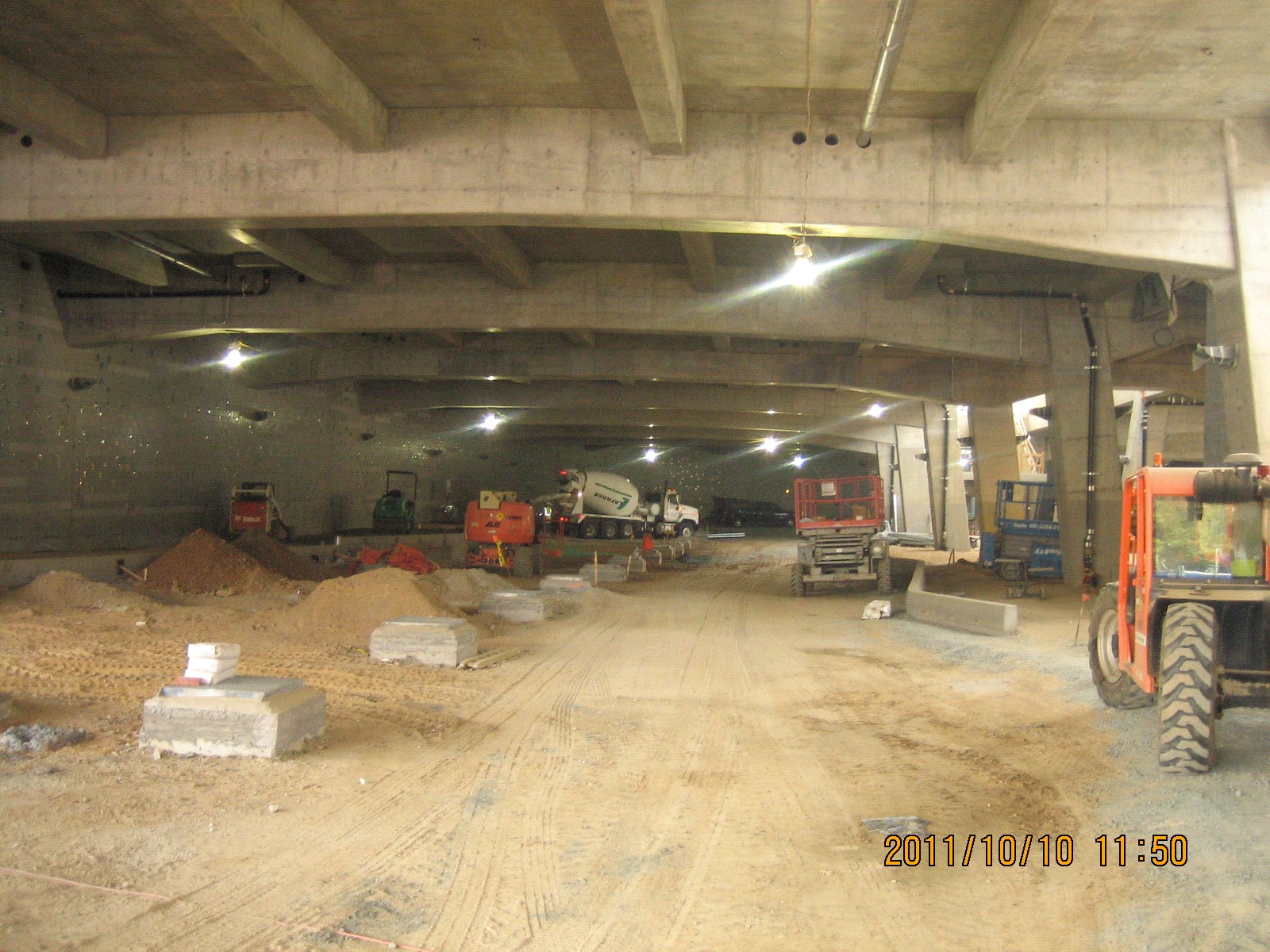

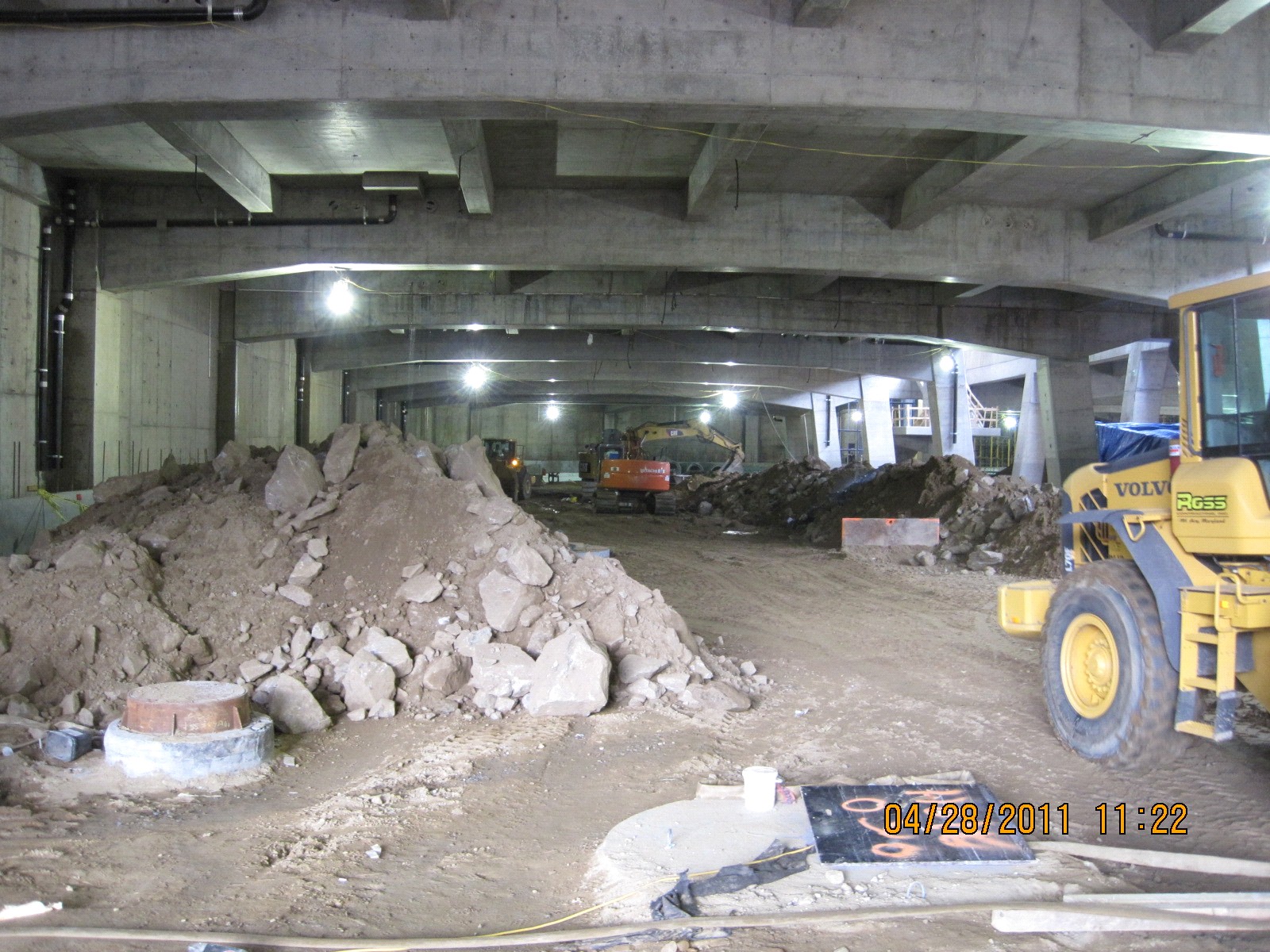

View of the ceiling of the facility on the ground level (Level 305). The camera is pointing toward Colesville Road.

Silver Sprint Transit Center - construction image

View of the ceiling of the facility on the ground level (Level 305). The camera is pointing toward the Metro station. This photo and the previous one were both taken from the same location, near the intersection of Bonifant Street and Ramsey Avenue.

Silver Sprint Transit Center - construction image

Picture is taken from Georgia Avenue and Colesville Road.
